750311992

750311992

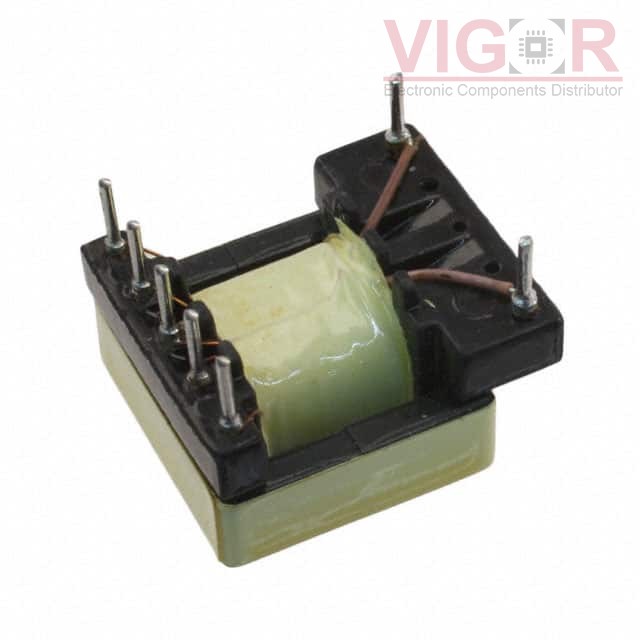

Image is for reference,
please contact us to get the real picture

Part No :

750311992

Manufacturer
Würth Elektronik Midcom
Description
TRANS FLYBACK CY8CLEDAC02 1.2MH
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
750311992 PDF
Availability
0 pieces
Unit Price
$6.57100

Current price of 750311992 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

750311992 Specifications
Type Description
Series:-
Package:Tray
Part Status:Active
Type:For AC/DC Converters
Applications:LED Drivers, AC/DC SMPS
Intended Chipset:CY8CLEDAC02
Chipset Manufacturer:Cypress Semiconductor Corp
Voltage - Primary:153 ~ 187V
Voltage - Auxiliary:12.2V @ 10mA
Voltage - Isolation:1500Vrms
Inductance @ Frequency:1.2mH @ 65kHz
Frequency:65kHz
Operating Temperature:-40°C ~ 125°C
Mounting Type:Through Hole
Size / Dimension:0.665" L x 0.740" W (16.90mm x 18.80mm)
Height - Seated (Max):0.529" (13.44mm)
Footprint:0.665" L x 0.740" W (16.90mm x 18.80mm)
Style:-
