750317233

750317233

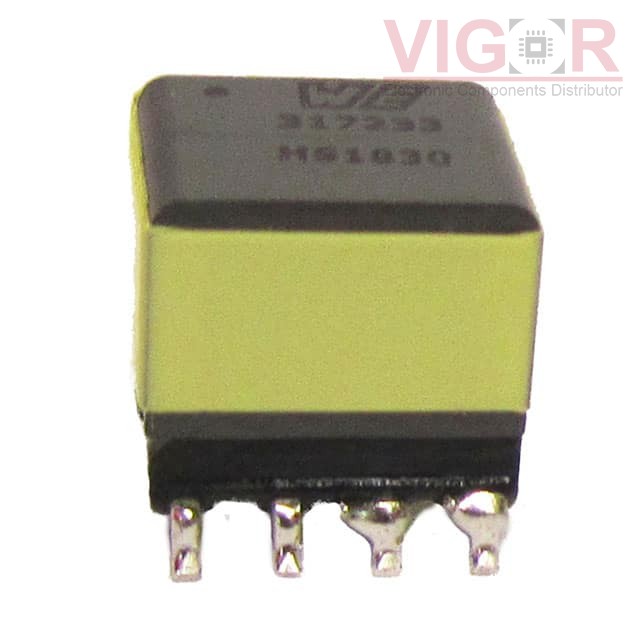

Image is for reference,
please contact us to get the real picture

Part No :

750317233

Manufacturer
Würth Elektronik Midcom
Description
FLYBACK TRANSFORMER EP7 SMT; UI
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
750317233 PDF
Availability
247 pieces
Unit Price
$2.43000

Current price of 750317233 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

750317233 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:For DC/DC Converters
Applications:Flyback Converters
Intended Chipset:-
Chipset Manufacturer:Maxim Integrated
Voltage - Primary:8 ~ 28VDC
Voltage - Auxiliary:-
Voltage - Isolation:1500Vrms
Inductance @ Frequency:16µH @ 100kHz
Frequency:143.5kHz
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Size / Dimension:0.385" L x 0.374" W (9.78mm x 9.50mm)
Height - Seated (Max):0.415" (10.54mm)
Footprint:0.324" L x 0.360" W (8.23mm x 9.14mm)
Style:Wirewound
