VGT15SEFD-200S1A4

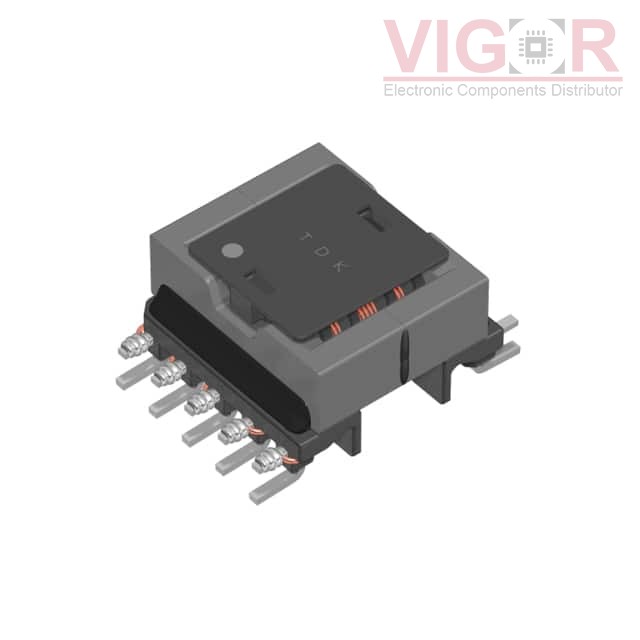

Image is for reference,
please contact us to get the real picture

Part No :: VGT15SEFD-200S1A4

Manufacturer: TDK Corporation

Description: TRANSFORMERS FOR IGBT/FET

Catalog: Switching Converter, SMPS Transformers

Shipped from: HK warehouse

Expected Shipping Date: Jul 02 - Jul 06 2025

DataSheet: VGT15SEFD-200S1A4 PDF

Availability: 114 pieces

Unit Price: ~~$11.64000~~

Current price of VGT15SEFD-200S1A4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

VGT15SEFD-200S1A4 Specifications

Type	Description
Series:	VGT
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	For AC/DC Converters
Applications:	Flyback Converters
Intended Chipset:	-
Chipset Manufacturer:	-
Voltage - Primary:	-
Voltage - Auxiliary:	-
Voltage - Isolation:	2600Vrms
Inductance @ Frequency:	10µH @ 100kHz
Frequency:	-
Operating Temperature:	-40°C ~ 130°C
Mounting Type:	Surface Mount
Size / Dimension:	0.614" L x 0.606" W (15.60mm x 15.40mm)
Height - Seated (Max):	0.394" (10.00mm)
Footprint:	0.764" L x 0.614" W (19.40mm x 15.60mm)
Style:	Wirewound
