PCA15EFD-U06S002

PCA15EFD-U06S002

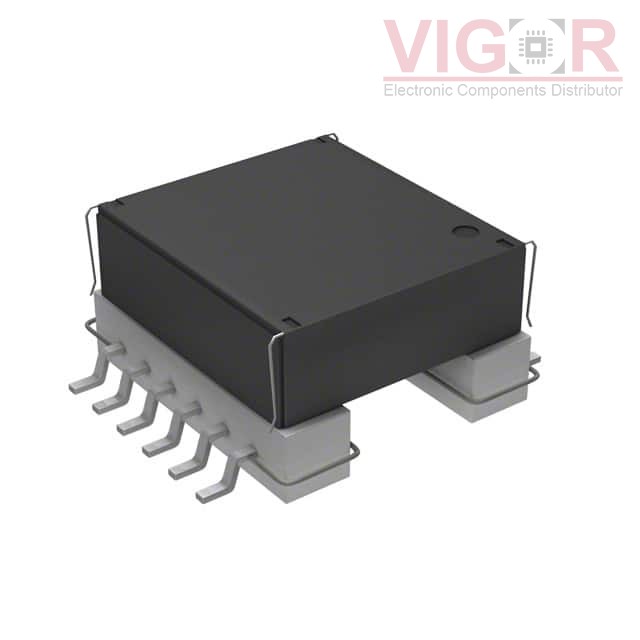

Image is for reference,
please contact us to get the real picture

Part No :

PCA15EFD-U06S002

Manufacturer
TDK Corporation
Description
INDUCTOR/XFRMR 6.8UH MULTIWIND
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
PCA15EFD-U06S002 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of PCA15EFD-U06S002 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PCA15EFD-U06S002 Specifications
Type Description
Series:PCA15EFD
Package:Tray
Part Status:Obsolete
Type:Configurable (For DC/DC)
Applications:Capacitor Charger
Intended Chipset:-
Chipset Manufacturer:-
Voltage - Primary:-
Voltage - Auxiliary:-
Voltage - Isolation:500Vrms
Inductance @ Frequency:Parallel 6.8µH @ 10kHz, Series 245µH @ 10kHz
Frequency:-
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Size / Dimension:0.713" L x 0.630" W (18.10mm x 16.00mm)
Height - Seated (Max):0.354" (9.00mm)
Footprint:0.713" L x 0.886" W (18.10mm x 22.50mm)
Style:-
