046284016002846+

046284016002846+

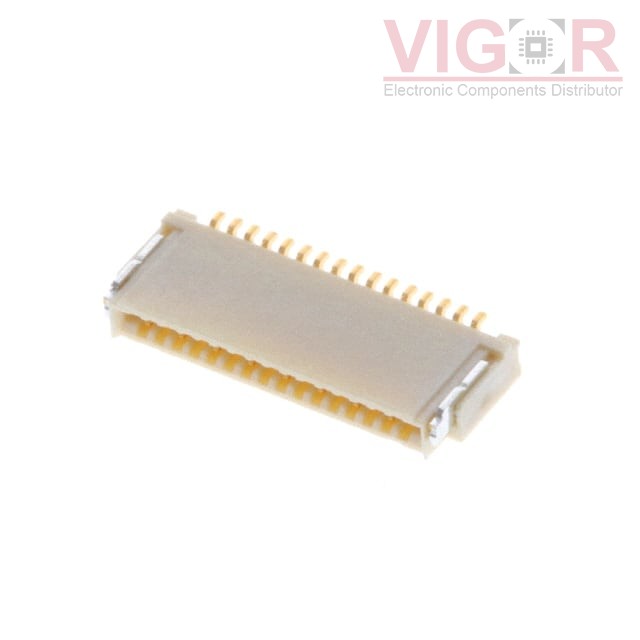

Image is for reference,
please contact us to get the real picture

Part No :

046284016002846+

Manufacturer
KYOCERA Corporation
Description
0.5MM PITCH - 16 POS - RT ANGLE
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
046284016002846+ PDF
Availability
3965 pieces
Unit Price
$0.79000

Current price of 046284016002846+ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

046284016002846+ Specifications
Type Description
Series:6284, Kyocera
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Flat Flex Type:FFC, FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Top and Bottom
Number of Positions:16
Pitch:0.020" (0.50mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.059" (1.50mm)
Locking Feature:-
Cable End Type:Tapered
Contact Material:Copper Alloy
Contact Finish:Gold
Housing Material:Plastic
Actuator Material:-
Features:Low Insertion Force (LIF), Solder Retention
Voltage Rating:50V
Operating Temperature:-40°C ~ 85°C
Material Flammability Rating:-
