FH23-61S-0.3SHW(05)

FH23-61S-0.3SHW(05)

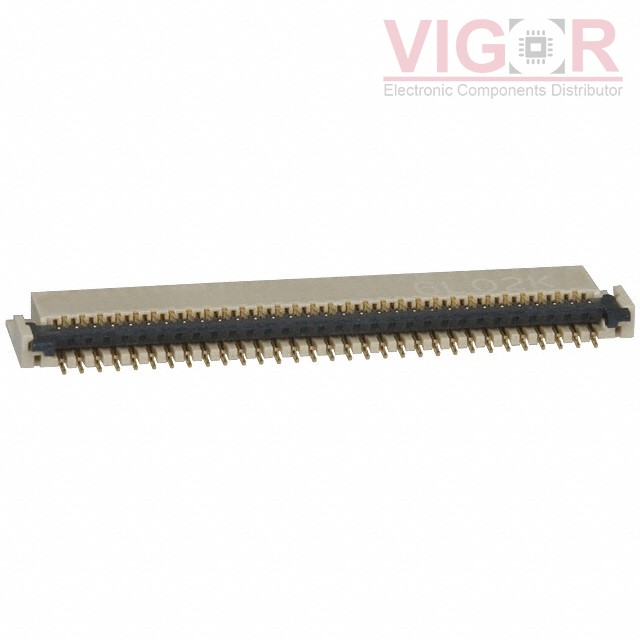

Image is for reference,
please contact us to get the real picture

Part No :

FH23-61S-0.3SHW(05)

Manufacturer
Hirose
Description
CONN FPC BOTTOM 61POS 0.30MM R/A
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
FH23-61S-0.3SHW(05) PDF
Availability
53 pieces
Unit Price
$2.98000

Current price of FH23-61S-0.3SHW(05) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

FH23-61S-0.3SHW(05) Specifications
Type Description
Series:FH23
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Flat Flex Type:FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Bottom
Number of Positions:61
Pitch:0.012" (0.30mm)
Termination:Solder
FFC, FCB Thickness:0.20mm
Height Above Board:0.049" (1.25mm)
Locking Feature:Flip Lock
Cable End Type:Tapered
Contact Material:Phosphor Bronze
Contact Finish:Gold
Housing Material:Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material:Liquid Crystal Polymer (LCP), Halogen Free
Features:Low Insertion Force (LIF)
Voltage Rating:30V
Operating Temperature:-55°C ~ 85°C
Material Flammability Rating:UL94 V-0
