1-146135-6

1-146135-6

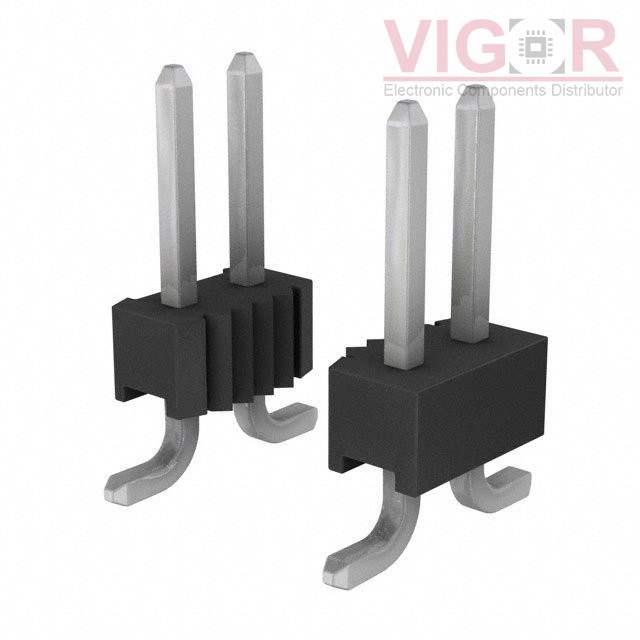

Image is for reference,
please contact us to get the real picture

Part No :

1-146135-6

Manufacturer
TE Connectivity AMP Connectors
Description
CONN HEADER SMD 6POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
May 05 - May 09 2024
DataSheet
1-146135-6 PDF
Availability
0 pieces
Unit Price
$0.25311

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of 1-146135-6 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

1-146135-6 Specifications
Type Description
Series:AMPMODU Mod II
Package:Tube
Part Status:Active
Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:6
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.320" (8.13mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.090" (2.29mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:100.0µin (2.54µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Liquid Crystal Polymer (LCP)
Features:-
Operating Temperature:-65°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3A
Voltage Rating:30VAC
