Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of 1944880000 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | Omnimate BL |
Package: | Bulk |
Part Status: | Active |
Type: | Plug, Female Sockets |
Number of Positions: | 7 |
Positions Per Level: | 7 |
Number of Levels: | 1 |
Pitch: | 0.200" (5.08mm) |
Header Orientation: | - |
Plug Wire Entry: | 180° |
Termination Style: | Screw - Clamping Yoke (Tension Sleeve) |
Mounting Type: | Free Hanging (In-Line) |
Current - IEC: | 23A |
Voltage - IEC: | 400 V |
Current - UL: | 20 A |
Voltage - UL: | 300 V |
Wire Gauge or Range - AWG: | 12-30 AWG |
Wire Gauge or Range - mm²: | 0.2-4mm² |
Color: | Orange |
Operating Temperature: | -50°C ~ 100°C |
Contact Mating Finish: | Tin |
Features: | Ejector Latches, Retention Latches (Non-Wire Side) |

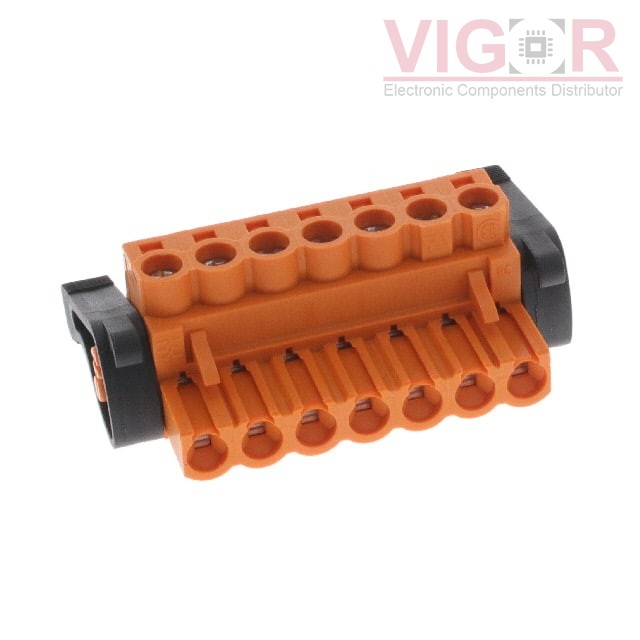

TERM BLOCK PLUG 7POS STR 5.08MM
