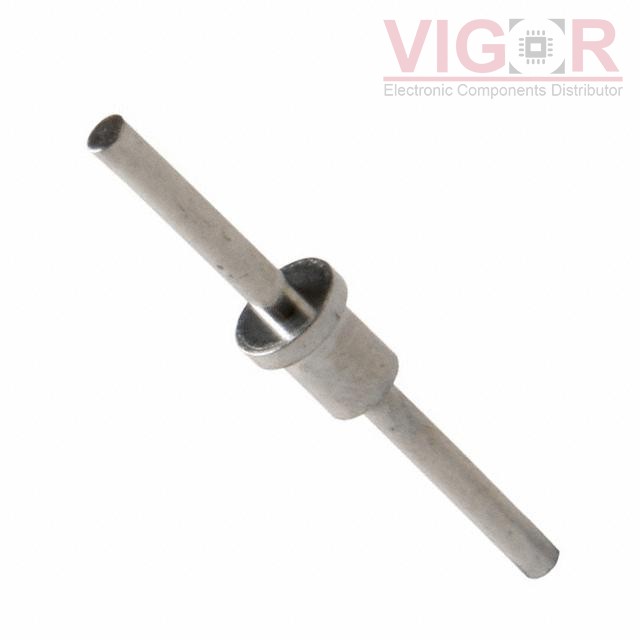

H2101-01

H2101-01

Image is for reference,
please contact us to get the real picture

Part No :

H2101-01

Manufacturer
Harwin
Description
CONN PC PIN CIRC 0.036DIA TIN
Catalog
Terminals - PC Pin, Single Post Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
H2101-01 PDF
Availability
6754 pieces
Unit Price
$0.43000

Current price of H2101-01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

H2101-01 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Terminal Type:PC Pin
Terminal Style:Double End
Pin Size - Above Flange:0.036" (0.91mm) Dia
Pin Size - Below Flange:-
Length - Above Flange:0.219" (5.56mm)
Length - Below Flange:0.324" (8.23mm)
Length - Overall:0.563" (14.30mm)
Flange Diameter:0.094" (2.39mm)
Mounting Hole Diameter:0.070" ~ 0.074" (1.78mm ~ 1.87mm)
Mounting Type:Through Hole
Termination:Swage
Insulation:Non-Insulated
Board Thickness:0.063" (1.60mm)
Contact Material:Brass
Contact Finish:Tin
Contact Finish Thickness:-
