H2173-01

H2173-01

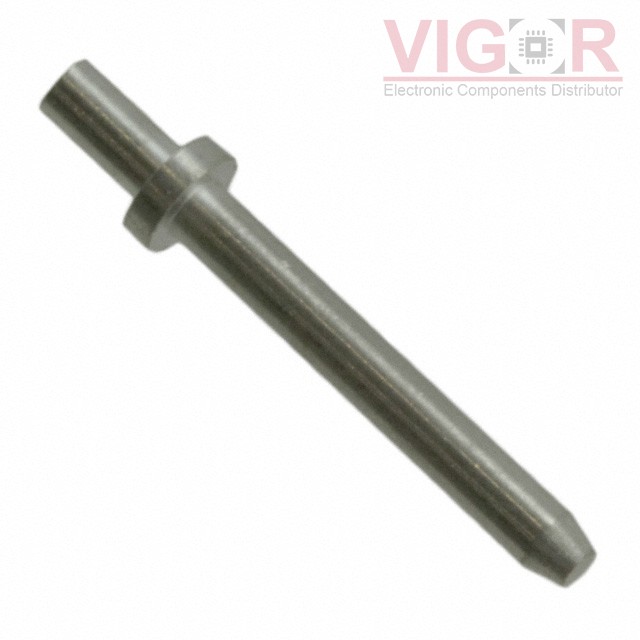

Image is for reference,
please contact us to get the real picture

Part No :

H2173-01

Manufacturer
Harwin
Description
CONN PC PIN CIRC 0.041DIA TIN
Catalog
Terminals - PC Pin, Single Post Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
H2173-01 PDF
Availability
969 pieces
Unit Price
$0.35000

Current price of H2173-01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

H2173-01 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Terminal Type:PC Pin
Terminal Style:Single End
Pin Size - Above Flange:0.041" (1.04mm) Dia
Pin Size - Below Flange:-
Length - Above Flange:0.300" (7.62mm)
Length - Below Flange:0.082" (2.08mm)
Length - Overall:0.402" (10.20mm)
Flange Diameter:0.070" (1.77mm)
Mounting Hole Diameter:0.041" ~ 0.045" (1.04mm ~ 1.14mm)
Mounting Type:Through Hole
Termination:Swage
Insulation:Non-Insulated
Board Thickness:0.063" (1.60mm)
Contact Material:Brass
Contact Finish:Tin
Contact Finish Thickness:-
