H2105-01

H2105-01

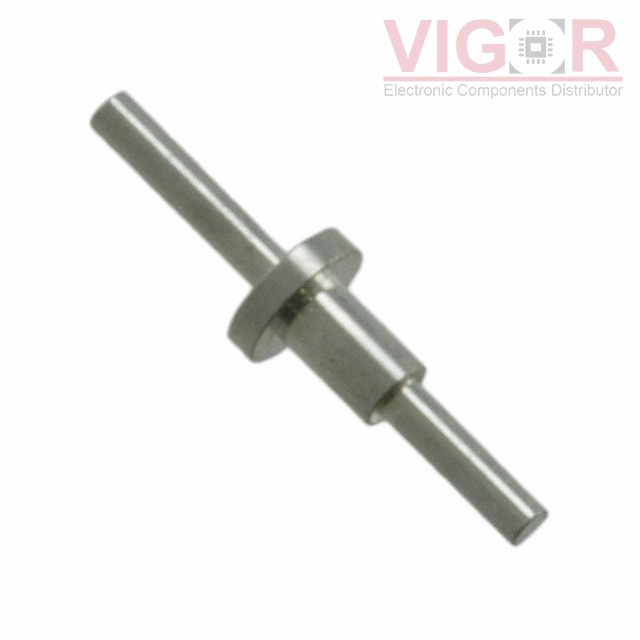

Image is for reference,
please contact us to get the real picture

Part No :

H2105-01

Manufacturer
Harwin
Description
CONN PC PIN CIRC 0.032DIA TIN
Catalog
Terminals - PC Pin, Single Post Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 08 - Jul 12 2025
DataSheet
H2105-01 PDF
Availability
331 pieces
Unit Price
$0.25000

Current price of H2105-01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

H2105-01 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Terminal Type:PC Pin
Terminal Style:Double End
Pin Size - Above Flange:0.032" (0.81mm) Dia
Pin Size - Below Flange:-
Length - Above Flange:0.156" (3.96mm)
Length - Below Flange:0.199" (5.05mm)
Length - Overall:0.375" (9.53mm)
Flange Diameter:0.094" (2.39mm)
Mounting Hole Diameter:0.052" ~ 0.056" (1.32mm ~ 1.42mm)
Mounting Type:Through Hole
Termination:Swage
Insulation:Non-Insulated
Board Thickness:0.063" (1.60mm)
Contact Material:Brass
Contact Finish:Tin
Contact Finish Thickness:-
