H9037-01

H9037-01

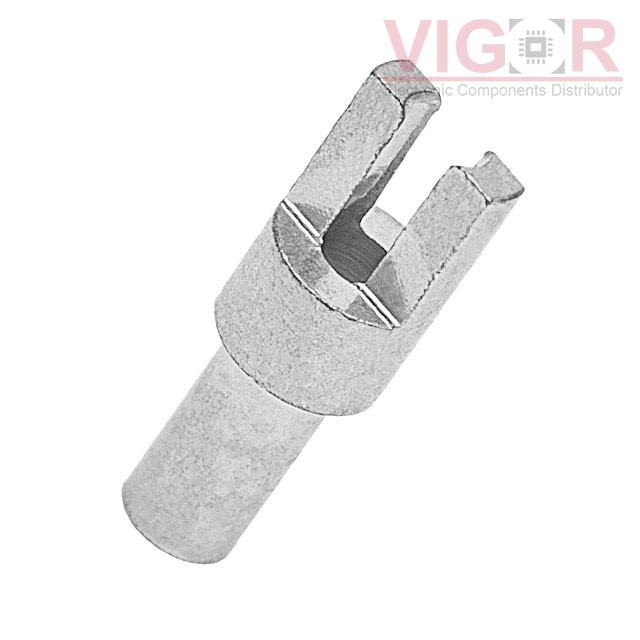

Image is for reference,
please contact us to get the real picture

Part No :

H9037-01

Manufacturer
Harwin
Description
TERM TURRET HOLLOW L=3.96MM TIN
Catalog
Terminals - Turret Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
H9037-01 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of H9037-01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

H9037-01 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Obsolete
Terminal Type:Single End, Fork, Hollow
Number of Turrets:Single
Length - Above Board:0.156" (3.96mm)
Length - Below Flange:0.094" ~ 0.099" (2.39mm ~ 2.51mm)
Length - Overall:0.281" (7.14mm)
Mounting Type:Through Hole
Termination:Swage
Flange Diameter:0.094" (2.39mm)
Diameter - Turret Head:-
Staking Side OD:0.061" ~ 0.064" (1.55mm ~ 1.63mm)
Staking Side ID:-
Mounting Hole Diameter:0.064" ~ 0.068" (1.63mm ~ 1.72mm)
Board Thickness:0.094" (2.39mm)
Contact Material:Brass Alloy
Contact Finish:Tin
Contact Finish Thickness:-
Insulation:Non-Insulated
