NTE6109

NTE6109

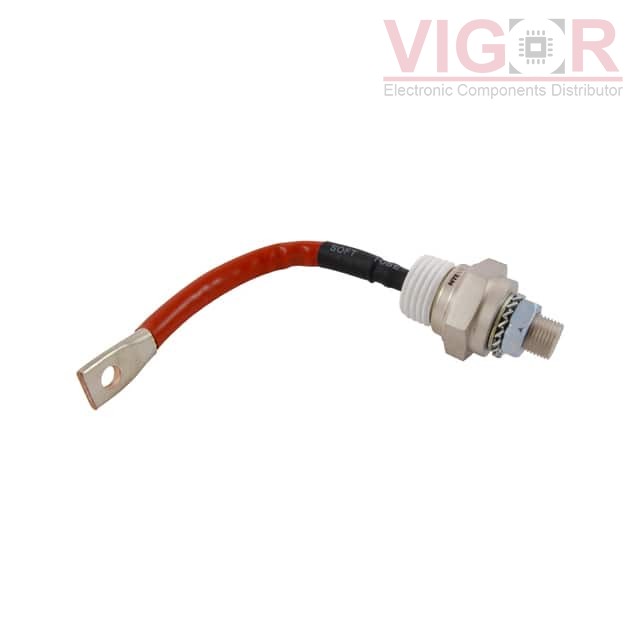

Image is for reference,
please contact us to get the real picture

Part No :

NTE6109

Manufacturer
NTE Electronics, Inc.
Description
R-1600PRV 550A ANODE
Catalog
Diodes - Rectifiers - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
NTE6109 PDF
Availability
4 pieces
Unit Price
$338.52000

Current price of NTE6109 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NTE6109 Specifications
Type Description
Series:-
Package:Bag
Part Status:Active
Diode Type:Standard
Voltage - DC Reverse (Vr) (Max):1600 V
Current - Average Rectified (Io):300A
Voltage - Forward (Vf) (Max) @ If:2.15 V @ 1500 A
Speed:Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr):9 µs
Current - Reverse Leakage @ Vr:50 mA @ 1600 V
Capacitance @ Vr, F:-
Mounting Type:Stud Mount
Package / Case:TO-209AE, TO-118-4, Stud
Supplier Device Package:T-70
Operating Temperature - Junction:-65°C ~ 200°C
