PSMN4R2-30MLDX

PSMN4R2-30MLDX

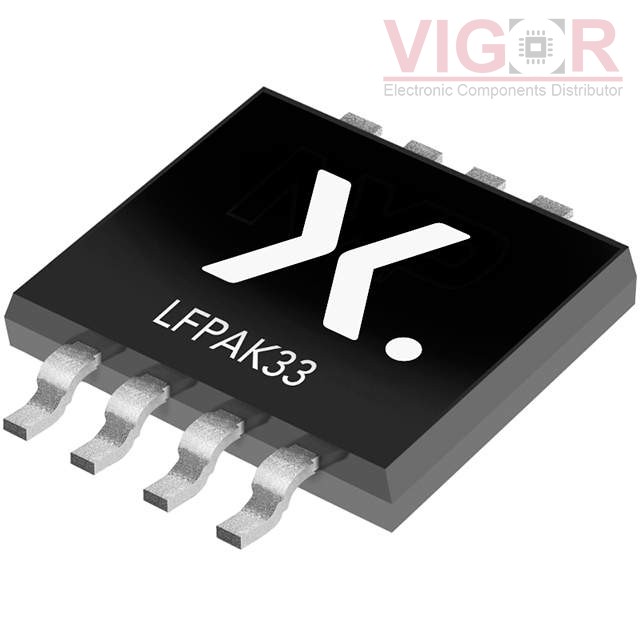

Image is for reference,
please contact us to get the real picture

Part No :

PSMN4R2-30MLDX

Manufacturer
Nexperia
Description
MOSFET N-CH 30V 70A LFPAK33
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
PSMN4R2-30MLDX PDF
Availability
0 pieces
Unit Price
$0.55000

Current price of PSMN4R2-30MLDX is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PSMN4R2-30MLDX Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):30 V
Current - Continuous Drain (Id) @ 25°C:70A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:4.3mOhm @ 25A, 10V
Vgs(th) (Max) @ Id:2.2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:29.3 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:1795 pF @ 15 V
FET Feature:Schottky Diode (Body)
Power Dissipation (Max):65W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:LFPAK33
Package / Case:SOT-1210, 8-LFPAK33
