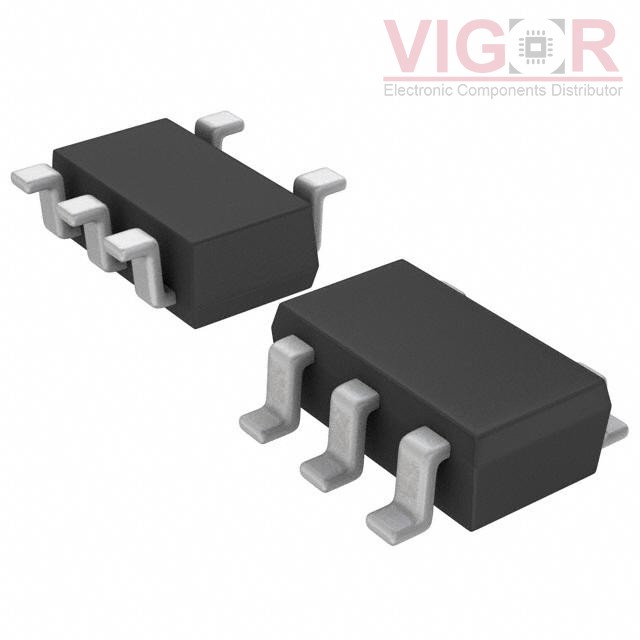

QS5U26TR

Image is for reference,
please contact us to get the real picture

Part No :

QS5U26TR

Manufacturer
ROHM Semiconductor
Description
MOSFET P-CH 20V 1.5A TSMT5
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 03 - Jul 07 2025
DataSheet
QS5U26TR PDF
Availability
0 pieces
Unit Price
$0.21700

Current price of QS5U26TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:P-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):20 V
Current - Continuous Drain (Id) @ 25°C:1.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On):2.5V, 4.5V
Rds On (Max) @ Id, Vgs:200mOhm @ 1.5A, 4.5V
Vgs(th) (Max) @ Id:2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:4.2 nC @ 4.5 V
Vgs (Max):±12V
Input Capacitance (Ciss) (Max) @ Vds:325 pF @ 10 V
FET Feature:Schottky Diode (Isolated)
Power Dissipation (Max):1.25W (Ta)
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:TSMT5
Package / Case:SOT-23-5 Thin, TSOT-23-5
