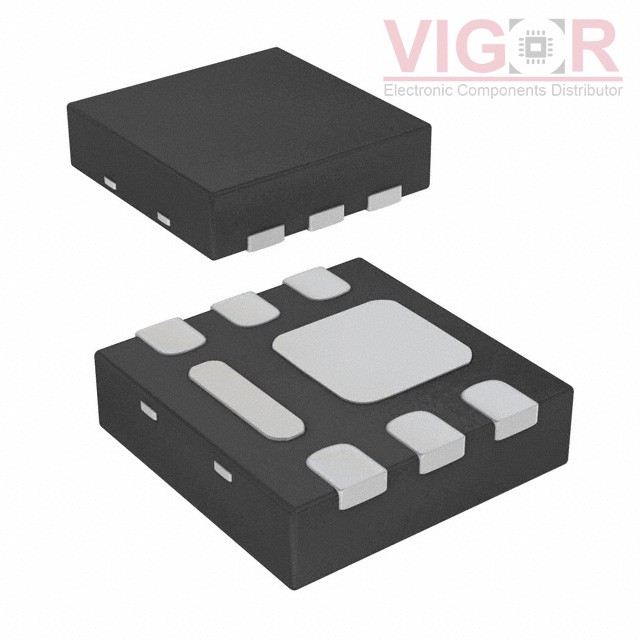

AON2409

AON2409

Image is for reference,
please contact us to get the real picture

Part No :

AON2409

Manufacturer
Alpha and Omega Semiconductor, Inc.
Description
MOSFET P-CH 30V 8A 6DFN
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
AON2409 PDF
Availability
0 pieces
Unit Price
$0.70000

Current price of AON2409 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AON2409 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Not For New Designs
FET Type:P-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):30 V
Current - Continuous Drain (Id) @ 25°C:8A (Ta)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:32mOhm @ 8A, 10V
Vgs(th) (Max) @ Id:2.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:14.5 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:530 pF @ 15 V
FET Feature:-
Power Dissipation (Max):2.8W (Ta)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:6-DFN-EP (2x2)
Package / Case:6-UDFN Exposed Pad
