RGS80TSX2HRC11

RGS80TSX2HRC11

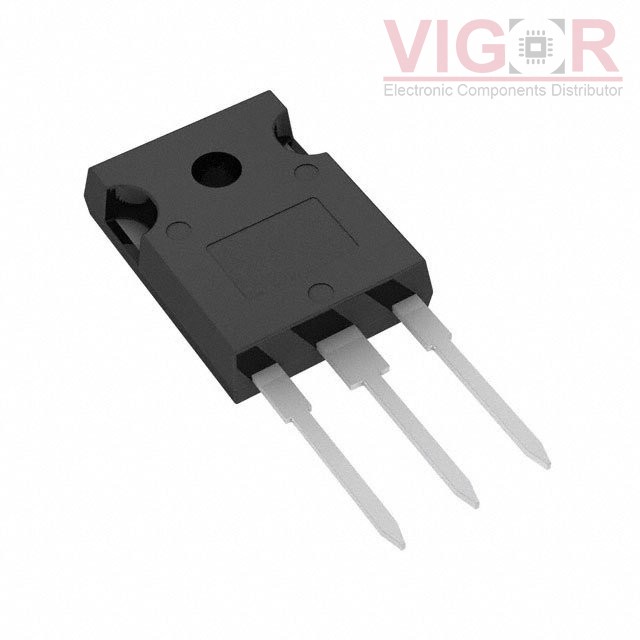

Image is for reference,
please contact us to get the real picture

Part No :

RGS80TSX2HRC11

Manufacturer
ROHM Semiconductor
Description
1200V 40A FIELD STOP TRENCH IGBT
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 17 - Aug 21 2025
DataSheet
RGS80TSX2HRC11 PDF
Availability
318 pieces
Unit Price
$9.67000

Current price of RGS80TSX2HRC11 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RGS80TSX2HRC11 Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
IGBT Type:Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):1200 V
Current - Collector (Ic) (Max):80 A
Current - Collector Pulsed (Icm):120 A
Vce(on) (Max) @ Vge, Ic:2.1V @ 15V, 40A
Power - Max:555 W
Switching Energy:3mJ (on), 3.1mJ (off)
Input Type:Standard
Gate Charge:104 nC
Td (on/off) @ 25°C:49ns/199ns
Test Condition:600V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr):-
Operating Temperature:-40°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-247-3
Supplier Device Package:TO-247N
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT APT40GP90B2DQ2G

APT40GP90B2DQ2G

IGBT 900V 101A 543W TMAX
HOT IXGP24N120C3

IXGP24N120C3

IGBT 1200V 48A 250W TO220
HOT IXYA20N120A4HV

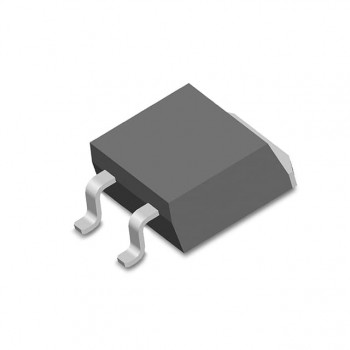

IXYA20N120A4HV
