RJH60V1BDPE-00#J3

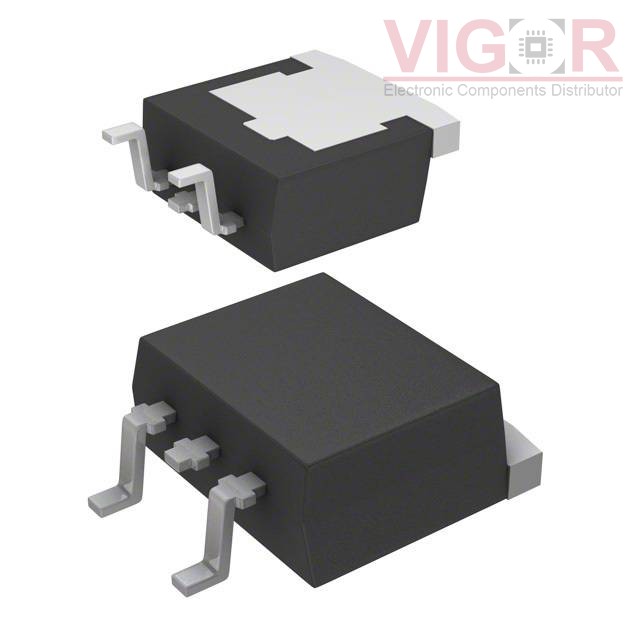

Image is for reference,
please contact us to get the real picture

Part No :: RJH60V1BDPE-00#J3

Manufacturer: Renesas Electronics America

Description: IGBT 600V 16A 52W LDPAK

Catalog: Transistors - IGBTs - Single

Shipped from: HK warehouse

Expected Shipping Date: Aug 25 - Aug 29 2025

DataSheet: RJH60V1BDPE-00#J3 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of RJH60V1BDPE-00#J3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RJH60V1BDPE-00#J3 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
IGBT Type:	Trench
Voltage - Collector Emitter Breakdown (Max):	600 V
Current - Collector (Ic) (Max):	16 A
Current - Collector Pulsed (Icm):	-
Vce(on) (Max) @ Vge, Ic:	2.2V @ 15V, 8A
Power - Max:	52 W
Switching Energy:	17µJ (on), 110µJ (off)
Input Type:	Standard
Gate Charge:	19 nC
Td (on/off) @ 25°C:	30ns/55ns
Test Condition:	300V, 8A, 5Ohm, 15V
Reverse Recovery Time (trr):	25 ns
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	SC-83
Supplier Device Package:	4-LDPAK

Please confirm the specifications of the products when ordering.
