ICM0805ER261M

ICM0805ER261M

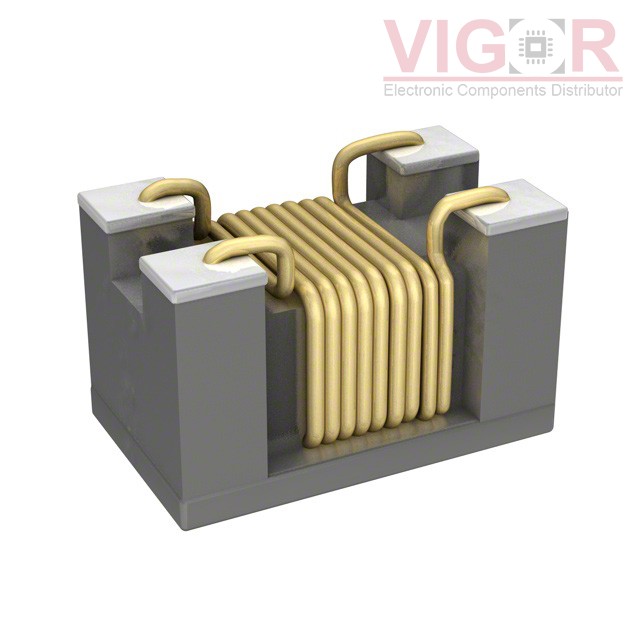

Image is for reference,
please contact us to get the real picture

Part No :

ICM0805ER261M

Manufacturer
Vishay / Dale
Description
CMC 300MA 2LN 260 OHM SMD
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
ICM0805ER261M PDF
Availability
0 pieces
Unit Price
$0.35700

Current price of ICM0805ER261M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ICM0805ER261M Specifications
Type Description
Series:ICM-0805
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Filter Type:Signal Line
Number of Lines:2
Impedance @ Frequency:260 Ohms @ 100 MHz
Inductance @ Frequency:-
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):300mA
DC Resistance (DCR) (Max):400mOhm
Voltage Rating - DC:50V
Voltage Rating - AC:-
Operating Temperature:-40°C ~ 85°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Surface Mount
Size / Dimension:0.079" L x 0.047" W (2.00mm x 1.20mm)
Height (Max):0.057" (1.45mm)
Package / Case:Horizontal, 4 PC Pad
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT TLF9UA302WR42K1

TLF9UA302WR42K1

CMC 3MH 420MA 2LN TH
HOT B82747E6163A040

B82747E6163A040

CMC 2.2MH 16A 3LN TH

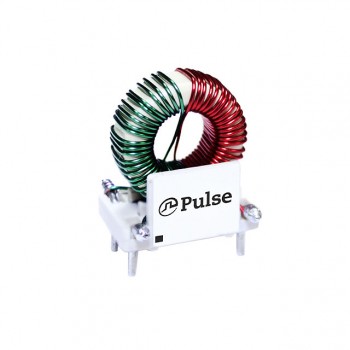

HOT PA3747.305NL
