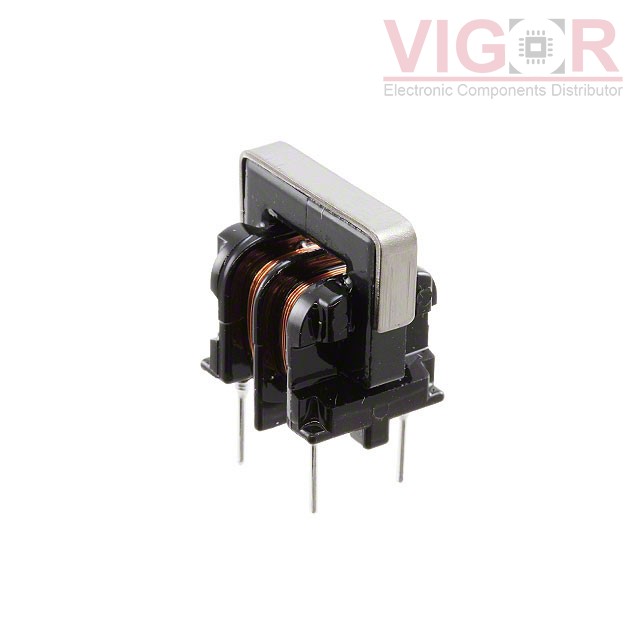

SU16VD-40020

Image is for reference,
please contact us to get the real picture

Part No :: SU16VD-40020

Manufacturer: KEMET

Description: CMC 0.02MH,4A, 0.05OHM

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Jul 10 - Jul 14 2025

DataSheet: SU16VD-40020 PDF

Availability: 298 pieces

Unit Price: ~~$2.66000~~

Current price of SU16VD-40020 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SU16VD-40020 Specifications

Type	Description
Series:	SU
Package:	Tray
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	20 µH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	4A
DC Resistance (DCR) (Max):	50mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	250V
Operating Temperature:	-25°C ~ 120°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	0.906" L x 0.748" W (23.00mm x 19.00mm)
Height (Max):	1.083" (27.50mm)
Package / Case:	Vertical, 4 PC Pin
