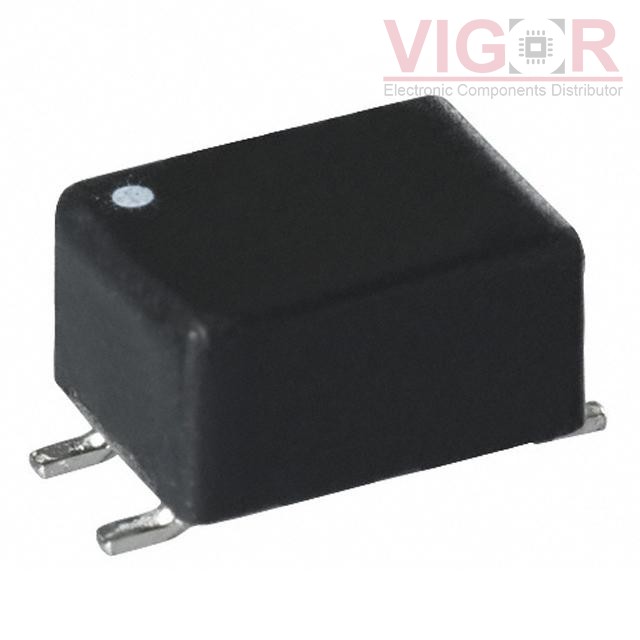

CC2824E113R-10

CC2824E113R-10

Image is for reference,
please contact us to get the real picture

Part No :

CC2824E113R-10

Manufacturer
Laird - Performance Materials
Description
CMC 11UH 800MA 2LN 800 OHM SMD
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Aug 01 - Aug 05 2025
DataSheet
CC2824E113R-10 PDF
Availability
0 pieces
Unit Price
$2.19170

Current price of CC2824E113R-10 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CC2824E113R-10 Specifications
Type Description
Series:CC
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Filter Type:Signal Line
Number of Lines:2
Impedance @ Frequency:800 Ohms @ 200 MHz
Inductance @ Frequency:11 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):800mA
DC Resistance (DCR) (Max):156mOhm
Voltage Rating - DC:80V
Voltage Rating - AC:42V
Operating Temperature:-40°C ~ 125°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Surface Mount
Size / Dimension:0.354" L x 0.217" W (9.00mm x 5.50mm)
Height (Max):0.193" (4.90mm)
Package / Case:Horizontal, 4 Flat Lead
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

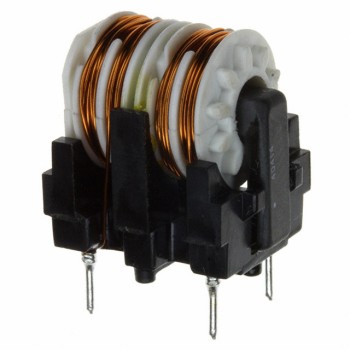

HOT 7448640414

7448640414

CMC 6.8MH 700MA 2LN TH

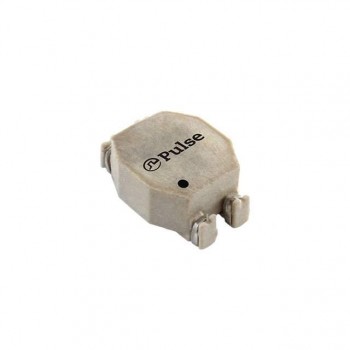

HOT TM8116NL

TM8116NL

CMC 470UH 700MA 2LN 800 OHM SMD

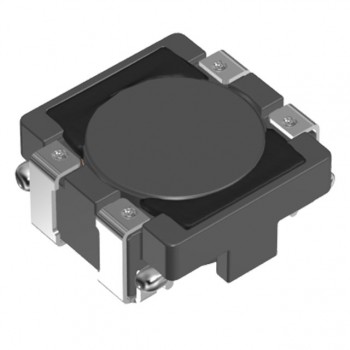

HOT ACM4520V-421-2P-TL00
