ELF-24V070A

ELF-24V070A

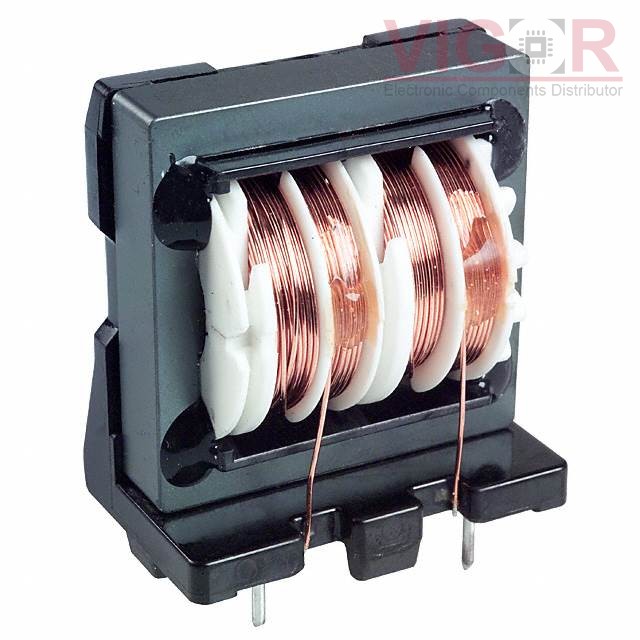

Image is for reference,
please contact us to get the real picture

Part No :

ELF-24V070A

Manufacturer
Panasonic
Description
COMMON MODE CHOKE 7A 2LN TH
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Aug 16 - Aug 20 2025
DataSheet
ELF-24V070A PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of ELF-24V070A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ELF-24V070A Specifications
Type Description
Series:V
Package:Bulk
Part Status:Obsolete
Filter Type:-
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:-
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):7A
DC Resistance (DCR) (Max):16mOhm (Typ)
Voltage Rating - DC:-
Voltage Rating - AC:-
Operating Temperature:-
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Through Hole
Size / Dimension:1.457" L x 0.945" W (37.00mm x 24.00mm)
Height (Max):1.673" (42.50mm)
Package / Case:Vertical, 4 PC Pin
