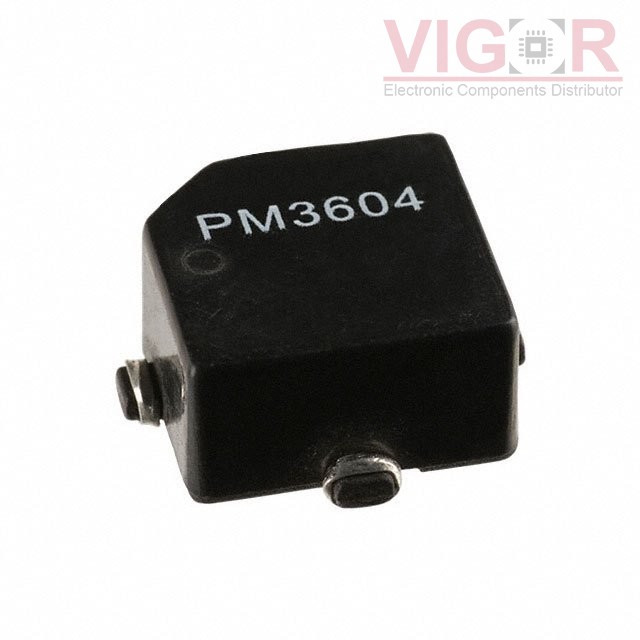

PM3604-68-RC

PM3604-68-RC

Image is for reference,
please contact us to get the real picture

Part No :

PM3604-68-RC

Manufacturer
J.W. Miller / Bourns
Description
INDUCT ARRAY 2 COIL 68UH SMD
Catalog
Arrays, Signal Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
PM3604-68-RC PDF
Availability
425 pieces
Unit Price
$1.92000

Current price of PM3604-68-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PM3604-68-RC Specifications
Type Description
Series:PM3600
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Number of Coils:2
Inductance - Connected In Parallel:68 µH
Inductance - Connected In Series:272 µH
Tolerance:±20%
Current Rating - Parallel:1.19 A
Current Rating - Series:600 mA
Current Saturation - Parallel:-
Current Saturation - Series:-
DC Resistance (DCR) - Parallel:140mOhm Max
DC Resistance (DCR) - Series:560mOhm Max
Shielding:Unshielded
Ratings:-
Operating Temperature:-55°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:Nonstandard
Size / Dimension:0.550" L x 0.452" W (13.97mm x 11.48mm)
Height:0.265" (6.73mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT CTX50-2P-R

CTX50-2P-R

INDUCT ARRAY 2 COIL 49.1UH SMD
HOT PA0766.421NLT

PA0766.421NLT

INDUCT ARRAY 2 COIL 218NH SMD

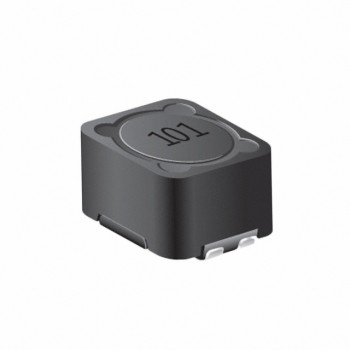

HOT SRF1280A-8R2Y
