SDQ25-R82-R

SDQ25-R82-R

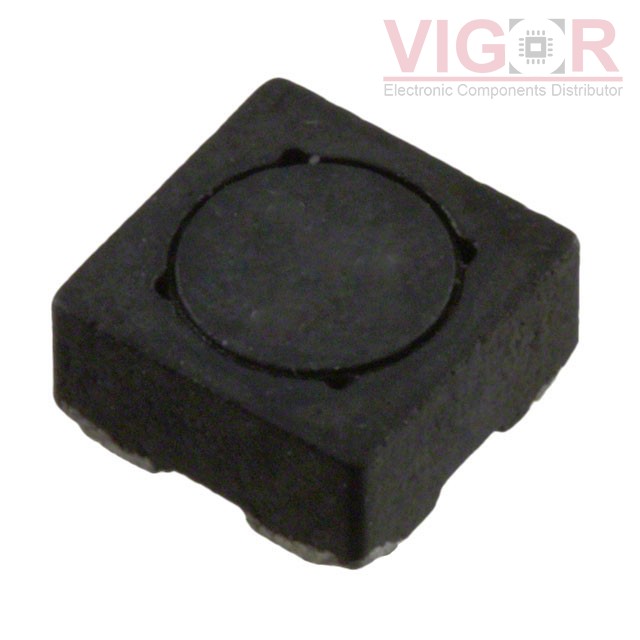

Image is for reference,
please contact us to get the real picture

Part No :

SDQ25-R82-R

Manufacturer
PowerStor (Eaton)
Description
INDUCT ARRAY 2 COIL 648NH SMD
Catalog
Arrays, Signal Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
SDQ25-R82-R PDF
Availability
0 pieces
Unit Price
$1.52250

Current price of SDQ25-R82-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDQ25-R82-R Specifications
Type Description
Series:SDQ
Package:Tape & Reel (TR)
Part Status:Active
Number of Coils:2
Inductance - Connected In Parallel:648 nH
Inductance - Connected In Series:2.59 µH
Tolerance:±30%
Current Rating - Parallel:3.37 A
Current Rating - Series:1.68 A
Current Saturation - Parallel:5 A
Current Saturation - Series:2.5 A
DC Resistance (DCR) - Parallel:22.1mOhm
DC Resistance (DCR) - Series:88.3mOhm
Shielding:Shielded
Ratings:-
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:Nonstandard
Size / Dimension:0.205" L x 0.205" W (5.20mm x 5.20mm)
Height:0.098" (2.50mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 744870470

744870470

INDUCT ARRAY 2 COIL 47UH SMD

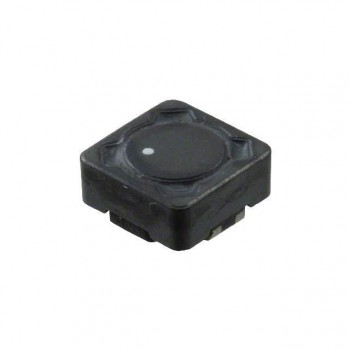

HOT 744878100
