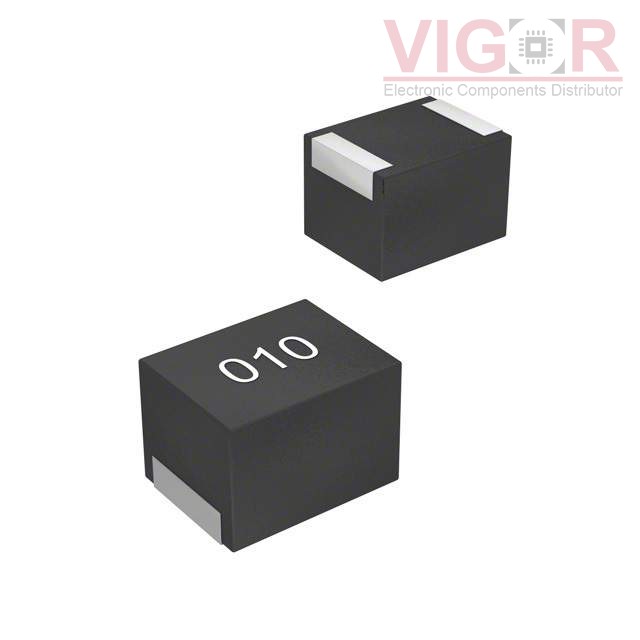

CMH322522-470KL

CMH322522-470KL

Image is for reference,
please contact us to get the real picture

Part No :

CMH322522-470KL

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 47UH 60MA 7 OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
CMH322522-470KL PDF
Availability
0 pieces
Unit Price
$0.20570

Current price of CMH322522-470KL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CMH322522-470KL Specifications
Type Description
Series:CMH322522
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:47 µH
Tolerance:±10%
Current Rating (Amps):60 mA
Current - Saturation (Isat):-
Shielding:Shielded
DC Resistance (DCR):7Ohm Max
Q @ Freq:30 @ 2.52MHz
Frequency - Self Resonant:13MHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:2.52 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1210 (3225 Metric)
Supplier Device Package:1210
Size / Dimension:0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max):0.094" (2.40mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

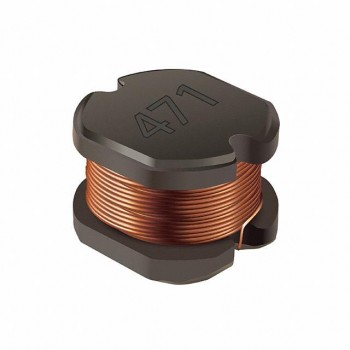

HOT SDE0805A-271K

SDE0805A-271K

FIXED IND 270UH 700MA 1.11OHM SM

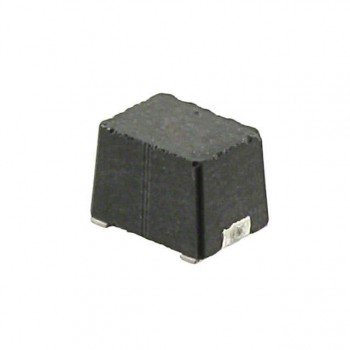

HOT ISC1812BN181J

ISC1812BN181J

FIXED IND 180UH 111MA 5.72 OHM

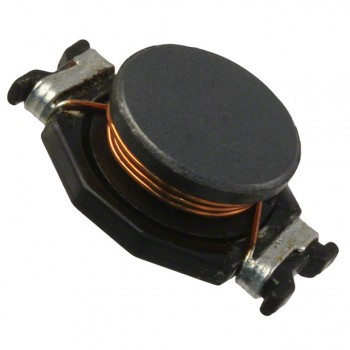

HOT SDR2207-101KL
