1231AS-H-R56N=P3

1231AS-H-R56N=P3

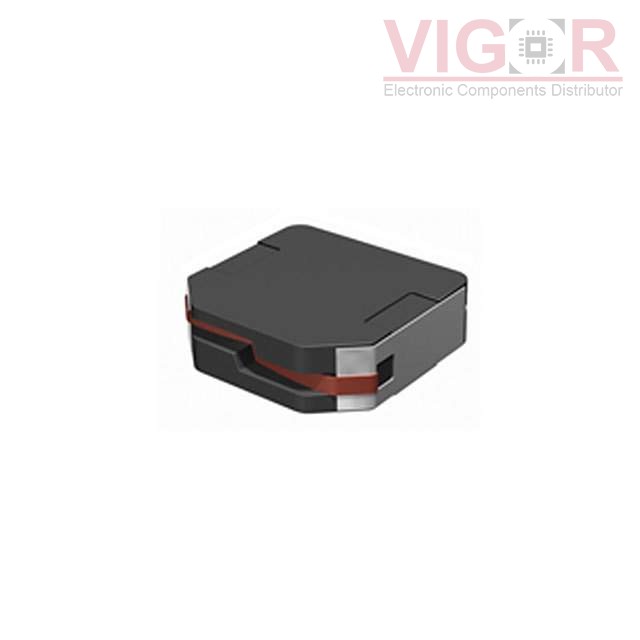

Image is for reference,
please contact us to get the real picture

Part No :

1231AS-H-R56N=P3

Manufacturer
TOKO / Murata
Description
FIXED IND 560NH 3.4A 29 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
1231AS-H-R56N=P3 PDF
Availability
2000 pieces
Unit Price
$0.55000

Current price of 1231AS-H-R56N=P3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1231AS-H-R56N=P3 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:560 nH
Tolerance:±30%
Current Rating (Amps):3.4 A
Current - Saturation (Isat):3.3A
Shielding:Shielded
DC Resistance (DCR):29mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-40°C ~ 85°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.146" L x 0.154" W (3.70mm x 3.90mm)
Height - Seated (Max):0.071" (1.80mm)
