PM104SH-470-RC

PM104SH-470-RC

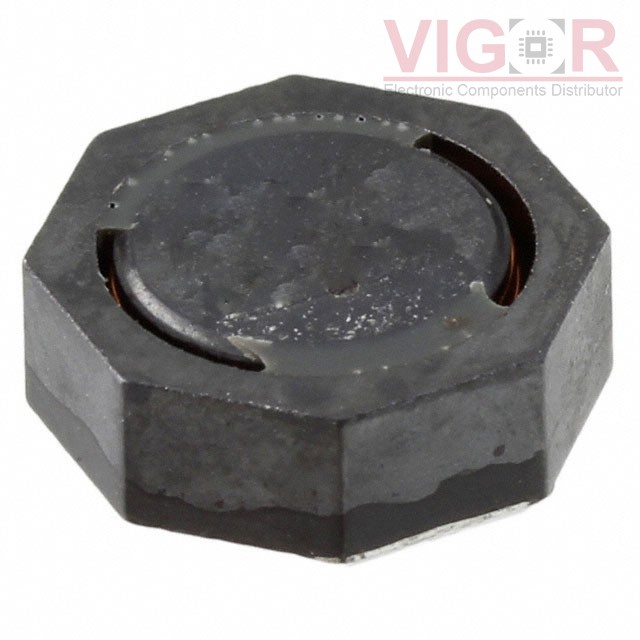

Image is for reference,
please contact us to get the real picture

Part No :

PM104SH-470-RC

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 47UH 1.65A 121MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 14 - Jul 18 2025
DataSheet
PM104SH-470-RC PDF
Availability
0 pieces
Unit Price
$0.77500

Current price of PM104SH-470-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PM104SH-470-RC Specifications
Type Description
Series:PM104SH
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:47 µH
Tolerance:±30%
Current Rating (Amps):1.65 A
Current - Saturation (Isat):1.6A
Shielding:Shielded
DC Resistance (DCR):121mOhm Max
Q @ Freq:22 @ 2.52MHz
Frequency - Self Resonant:8MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:2.52 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max):0.161" (4.10mm)
