SDR0805-471KL

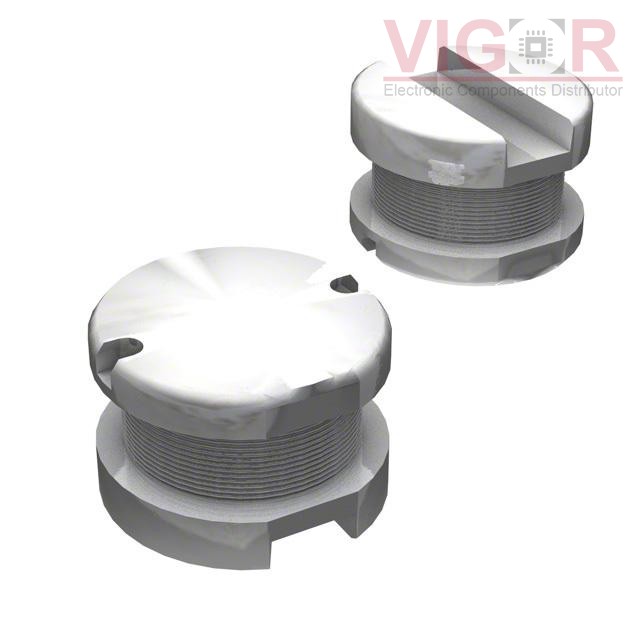

Image is for reference,
please contact us to get the real picture

Part No :: SDR0805-471KL

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 470UH 340MA 1.96OHM SM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 01 - Aug 05 2025

DataSheet: SDR0805-471KL PDF

Availability: 556 pieces

Unit Price: ~~$0.70000~~

Current price of SDR0805-471KL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDR0805-471KL Specifications

Type	Description
Series:	SDR0805
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	470 µH
Tolerance:	±10%
Current Rating (Amps):	340 mA
Current - Saturation (Isat):	500mA
Shielding:	Unshielded
DC Resistance (DCR):	1.96Ohm Max
Q @ Freq:	12 @ 796kHz
Frequency - Self Resonant:	4MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.307" L x 0.307" W (7.80mm x 7.80mm)
Height - Seated (Max):	0.209" (5.30mm)
