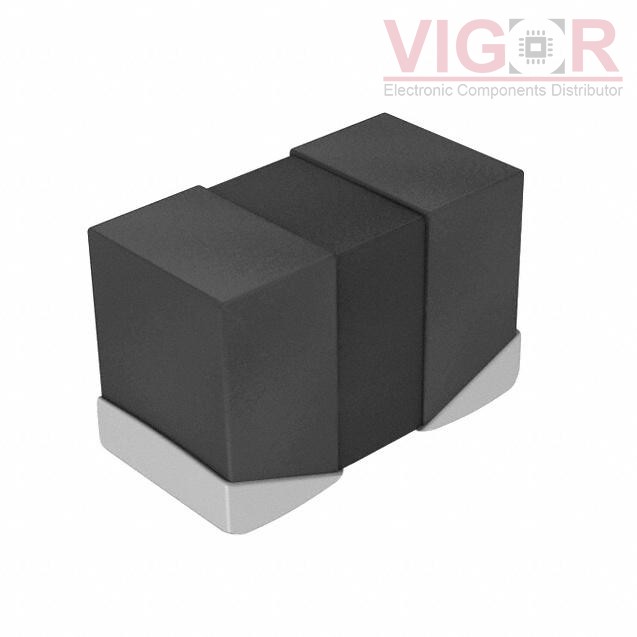

MBMK2520TR68N

Image is for reference,
please contact us to get the real picture

Part No :: MBMK2520TR68N

Manufacturer: TAIYO YUDEN

Description: FIXED IND 680NH 2.15A 58 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 28 - Aug 01 2025

DataSheet: MBMK2520TR68N PDF

Availability: 0 pieces

Unit Price: ~~$0.07992~~

Current price of MBMK2520TR68N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MBMK2520TR68N Specifications

Type	Description
Series:	MCOIL™, MB
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Metal
Inductance:	680 nH
Tolerance:	±30%
Current Rating (Amps):	2.15 A
Current - Saturation (Isat):	3.15A
Shielding:	Shielded
DC Resistance (DCR):	58mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	1 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1008 (2520 Metric)
Supplier Device Package:	1008 (2520 Metric)
Size / Dimension:	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max):	0.047" (1.20mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

PM127SH-100M-RC

FIXED IND 10UH 6A 19.5 MOHM SMD

HOT

S14100034

FIXED IND 22UH 18A 4.5 MOHM TH

HOT

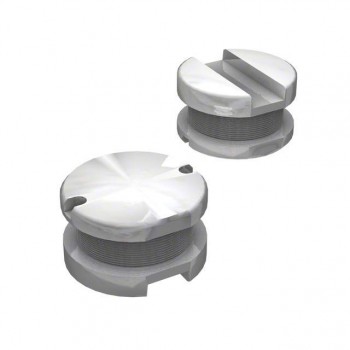

SDR0503-560KL
