EXL1V0503-1R0-R

EXL1V0503-1R0-R

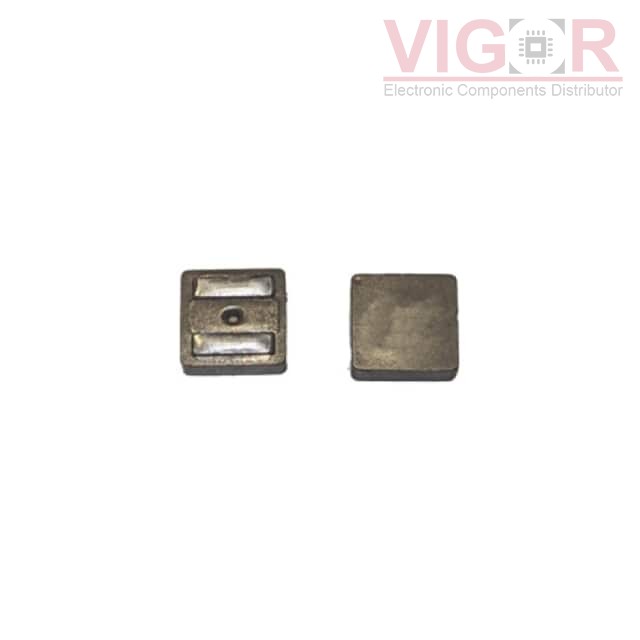

Image is for reference,
please contact us to get the real picture

Part No :

EXL1V0503-1R0-R

Manufacturer
PowerStor (Eaton)
Description
IND POWDER 1.00UH 14.3A
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
EXL1V0503-1R0-R PDF
Availability
0 pieces
Unit Price
$0.77000

Current price of EXL1V0503-1R0-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EXL1V0503-1R0-R Specifications
Type Description
Series:EXL1V0503
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Molded
Material - Core:Iron Powder
Inductance:1 µH
Tolerance:±20%
Current Rating (Amps):12.2 A
Current - Saturation (Isat):14.3A
Shielding:Shielded
DC Resistance (DCR):7.6mOhm Max
Q @ Freq:-
Frequency - Self Resonant:50MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.236" L x 0.224" W (6.00mm x 5.70mm)
Height - Seated (Max):0.122" (3.10mm)
