KLZ1608AHR2R2WTD25

KLZ1608AHR2R2WTD25

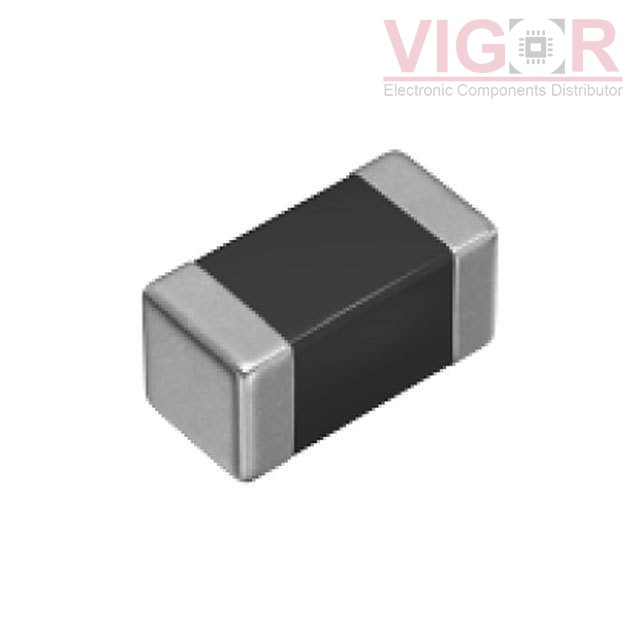

Image is for reference,
please contact us to get the real picture

Part No :

KLZ1608AHR2R2WTD25

Manufacturer
TDK Corporation
Description
FIXED IND 2.2UH 500MA 325 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
KLZ1608AHR2R2WTD25 PDF
Availability
1739 pieces
Unit Price
$0.25000

Current price of KLZ1608AHR2R2WTD25 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

KLZ1608AHR2R2WTD25 Specifications
Type Description
Series:KLZ-HR
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Multilayer
Material - Core:Ferrite
Inductance:2.2 µH
Tolerance:±20%
Current Rating (Amps):500 mA
Current - Saturation (Isat):130mA
Shielding:Shielded
DC Resistance (DCR):325mOhm
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:AEC-Q200
Operating Temperature:-55°C ~ 150°C
Inductance Frequency - Test:10 MHz
Features:Soft Termination
Mounting Type:Surface Mount
Package / Case:0603 (1608 Metric)
Supplier Device Package:0603 (1608 Metric)
Size / Dimension:0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max):0.037" (0.95mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT ISC1812ESR15K

ISC1812ESR15K

FIXED IND 150NH 491MA 290 MOHM
HOT HLC02220HTTR

HLC02220HTTR

FIXED IND 22NH 202MA 1.9 OHM SMD

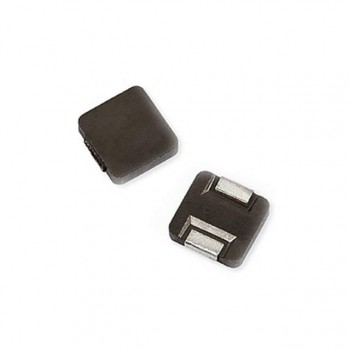

HOT MPI4020V2-R56-R
