AWCCA-50N50H40-C01-B

AWCCA-50N50H40-C01-B

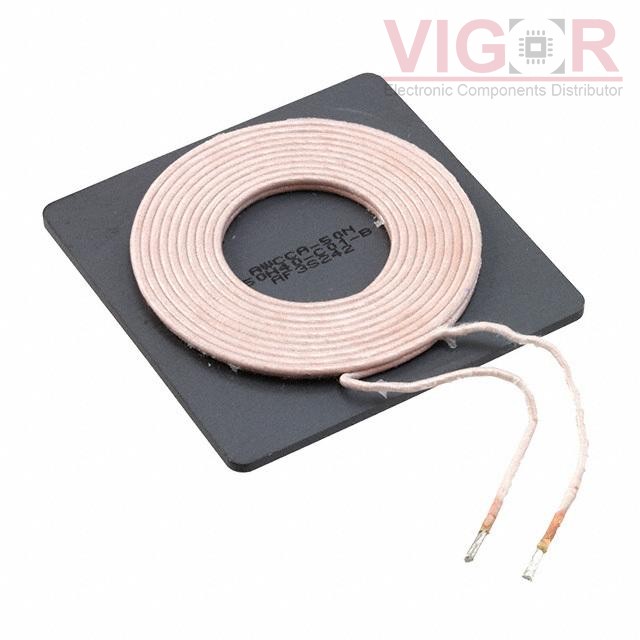

Image is for reference,
please contact us to get the real picture

Part No :

AWCCA-50N50H40-C01-B

Manufacturer
Abracon
Description
RX TX 1 COIL 1 LAYER 24UH 5.7A
Catalog
Wireless Charging Coils
Shipped from
HK warehouse
Expected Shipping Date
Aug 21 - Aug 25 2025
DataSheet
AWCCA-50N50H40-C01-B PDF
Availability
46 pieces
Unit Price
$8.52000

Current price of AWCCA-50N50H40-C01-B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AWCCA-50N50H40-C01-B Specifications
Type Description
Series:AWCCA-50N50
Package:Box
Part Status:Active
Function:Receiver, Transmitter
Type:1 Coil, 1 Layer
Inductance:24µH
Tolerance:±10%
DC Resistance (DCR):72mOhm
Q @ Freq:165 @ 100kHz
Current Rating (Amps):5.7A
Current - Saturation (Isat):27A
Frequency - Self Resonant:2.9MHz
Operating Temperature:-25°C ~ 85°C
Size / Dimension:1.96" L x 1.96" W x 0.15" H (50.0mm x 50.0mm x 4.0mm)
