760308101104

760308101104

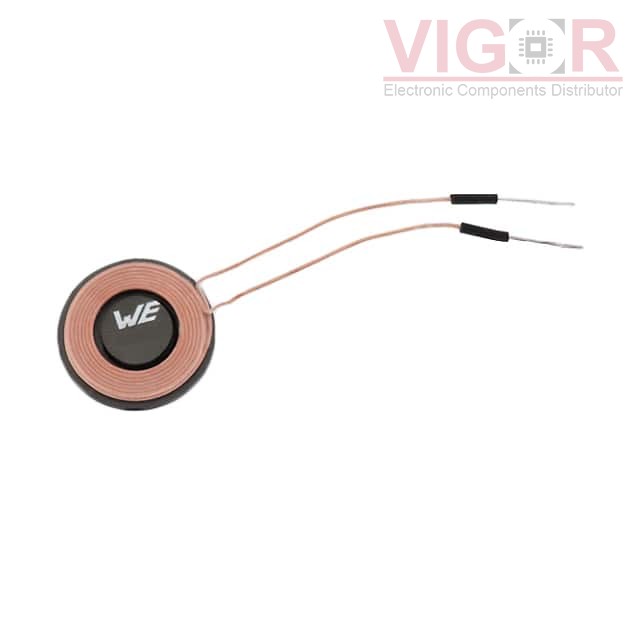

Image is for reference,
please contact us to get the real picture

Part No :

760308101104

Manufacturer
Würth Elektronik Midcom
Description
TX 1 COIL 2 LAYER 6.3UH 2.5A
Catalog
Wireless Charging Coils
Shipped from
HK warehouse
Expected Shipping Date
Jul 21 - Jul 25 2025
DataSheet
760308101104 PDF
Availability
1229 pieces
Unit Price
$12.32000

Current price of 760308101104 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

760308101104 Specifications
Type Description
Series:WE-WPCC
Package:Box
Part Status:Active
Function:Transmitter
Type:1 Coil, 2 Layer
Inductance:6.3µH
Tolerance:±10%
DC Resistance (DCR):125mOhm Max
Q @ Freq:42 @ 125kHz
Current Rating (Amps):2.5A
Current - Saturation (Isat):6A
Frequency - Self Resonant:20MHz
Operating Temperature:-20°C ~ 105°C
Size / Dimension:0.81" Dia x 0.10" H (20.5mm x 2.6mm)
