760308101410

760308101410

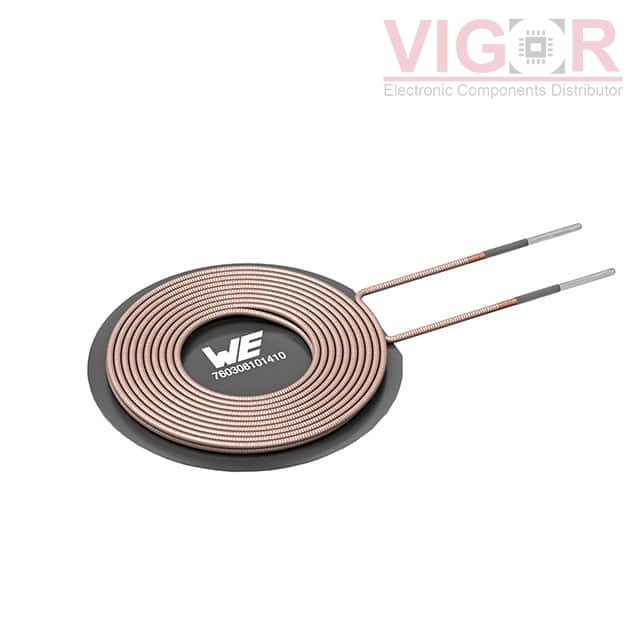

Image is for reference,
please contact us to get the real picture

Part No :

760308101410

Manufacturer
Würth Elektronik Midcom
Description
WE-WPCC WIRELESS POWER CHARGING
Catalog
Wireless Charging Coils
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
760308101410 PDF
Availability
23 pieces
Unit Price
$13.55000

Current price of 760308101410 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

760308101410 Specifications
Type Description
Series:WE-WPCC
Package:Tray
Part Status:Active
Function:Transmitter
Type:1 Coil, 1 Layer
Inductance:24µH
Tolerance:±10%
DC Resistance (DCR):100mOhm
Q @ Freq:170 @ 125kHz
Current Rating (Amps):5.5A
Current - Saturation (Isat):10A
Frequency - Self Resonant:6MHz
Operating Temperature:-20°C ~ 105°C
Size / Dimension:1.97" Dia x 0.12" H (50.0mm x 3.1mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
