760308105

760308105

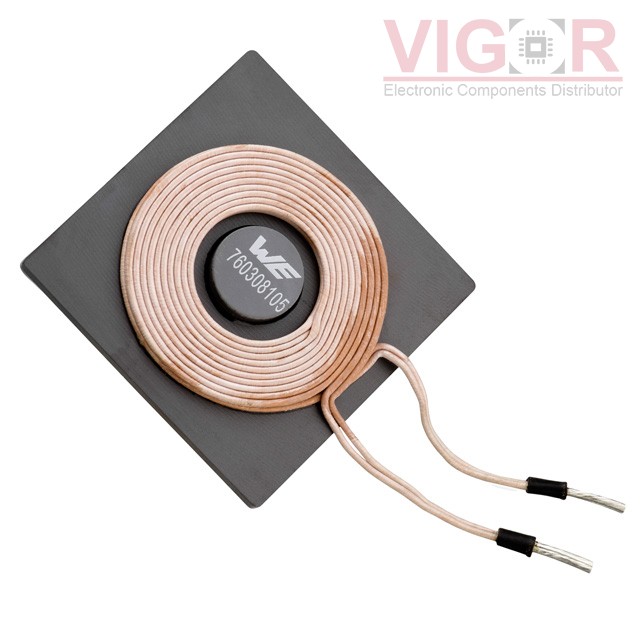

Image is for reference,
please contact us to get the real picture

Part No :

760308105

Manufacturer
Würth Elektronik Midcom
Description
TX 1 COIL 2 LYR BILFILAR 6.3UH
Catalog
Wireless Charging Coils
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
760308105 PDF
Availability
0 pieces
Unit Price
$12.76000

Current price of 760308105 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

760308105 Specifications
Type Description
Series:WE-WPCC
Package:Tray
Part Status:Active
Function:Transmitter
Type:1 Coil, 2 Layer, Bifilar
Inductance:6.3µH
Tolerance:±10%
DC Resistance (DCR):24mOhm Max
Q @ Freq:55 @ 125kHz
Current Rating (Amps):13A
Current - Saturation (Isat):16A
Frequency - Self Resonant:20MHz
Operating Temperature:-20°C ~ 105°C
Size / Dimension:2.10" L x 2.10" W x 0.24" H (53.3mm x 53.3mm x 6.0mm)
