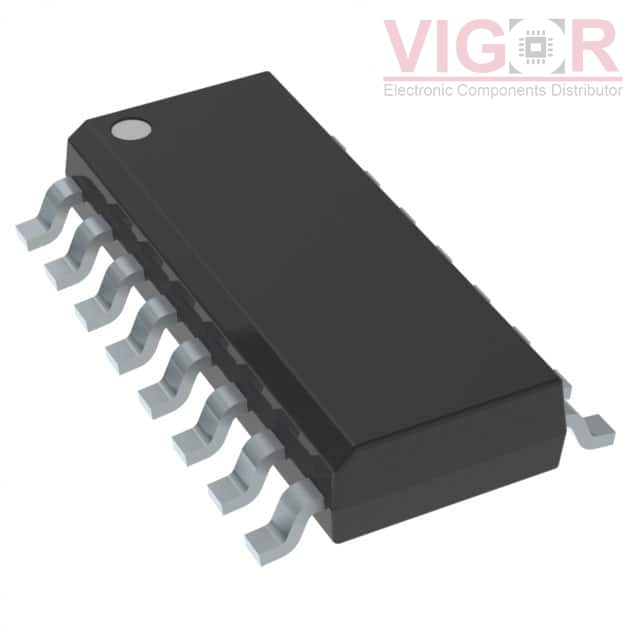

PI5A100WEX

PI5A100WEX

Image is for reference,
please contact us to get the real picture

Part No :

PI5A100WEX

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
IC SWITCH QUAD SPDT 16SOIC
Catalog
Interface - Analog Switches, Multiplexers, Demultiplexers
Shipped from
HK warehouse
Expected Shipping Date
Aug 10 - Aug 14 2025
DataSheet
PI5A100WEX PDF
Availability
849 pieces
Unit Price
$1.40000

Current price of PI5A100WEX is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PI5A100WEX Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Switch Circuit:SPDT
Multiplexer/Demultiplexer Circuit:2:1
Number of Circuits:4
On-State Resistance (Max):10Ohm
Channel-to-Channel Matching (ΔRon):800mOhm
Voltage - Supply, Single (V+):2V ~ 6V
Voltage - Supply, Dual (V±):-
Switch Time (Ton, Toff) (Max):15ns, 7ns
-3db Bandwidth:230MHz
Charge Injection:10pC (Max)
Channel Capacitance (CS(off), CD(off)):8pF, 14pF
Current - Leakage (IS(off)) (Max):10µA (Typ)
Crosstalk:-100dB @ 10MHz
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:16-SOIC (0.154", 3.90mm Width)
Supplier Device Package:16-SOIC
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT ADG453BRUZ-REEL7

ADG453BRUZ-REEL7

IC SWITCH QUAD SPST 16TSSOP
HOT DG506ACWI+T

DG506ACWI+T

IC MULTIPLEXER 16X1 28SOIC

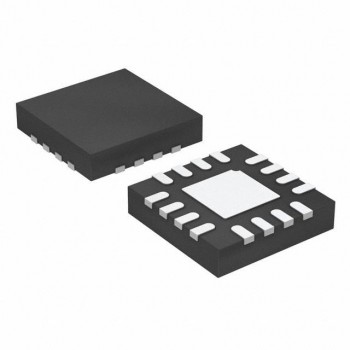

HOT TMUX6113RTER
