L6207PD

L6207PD

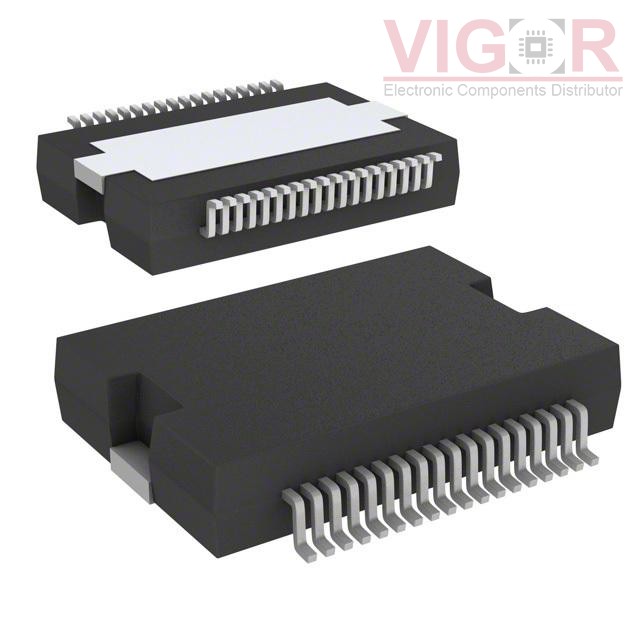

Image is for reference,
please contact us to get the real picture

Part No :

L6207PD

Manufacturer
STMicroelectronics
Description
IC MOTOR DRIVER PAR 36POWERSO
Catalog
PMIC - Full, Half-Bridge Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
L6207PD PDF
Availability
1088 pieces
Unit Price
$7.69000

Current price of L6207PD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

L6207PD Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Output Configuration:Half Bridge (4)
Applications:DC Motors, Stepper Motors, Voltage Regulators
Interface:Logic
Load Type:Inductive
Technology:DMOS
Rds On (Typ):300mOhm
Current - Output / Channel:2.8A
Current - Peak Output:5.6A
Voltage - Supply:8V ~ 52V
Voltage - Load:8V ~ 52V
Operating Temperature:-25°C ~ 125°C (TJ)
Features:Bootstrap Circuit
Fault Protection:Current Limiting, Over Temperature, UVLO
Mounting Type:Surface Mount
Package / Case:36-BSSOP (0.433", 11.00mm Width) Exposed Pad
Supplier Device Package:PowerSO-36
