VNH9013YTR

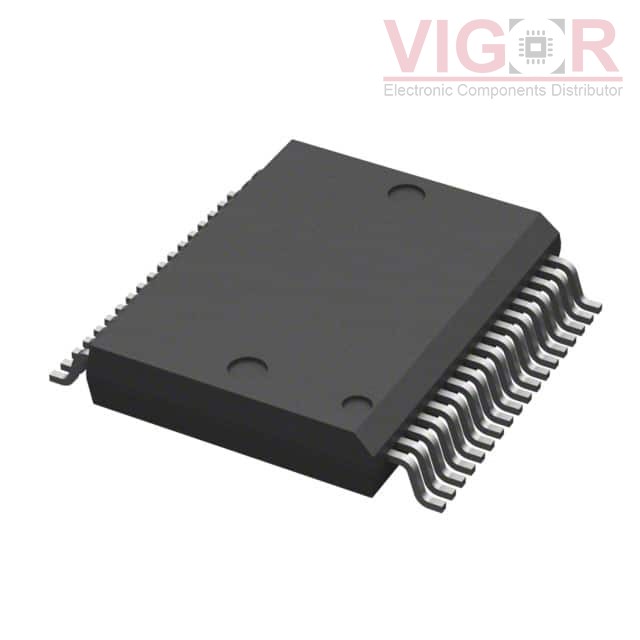

Image is for reference,
please contact us to get the real picture

Part No :: VNH9013YTR

Manufacturer: STMicroelectronics

Description: PSSO36L TRIPLE PAD

Catalog: PMIC - Full, Half-Bridge Drivers

Shipped from: HK warehouse

Expected Shipping Date: Jul 25 - Jul 29 2025

DataSheet: VNH9013YTR PDF

Availability: 861 pieces

Unit Price: ~~$3.61000~~

Current price of VNH9013YTR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

VNH9013YTR Specifications

Type	Description
Series:	Automotive, AEC-Q100
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Output Configuration:	Half Bridge (2)
Applications:	DC Motors, General Purpose
Interface:	-
Load Type:	Inductive, Resistive
Technology:	MOSFET (Metal Oxide)
Rds On (Typ):	7.8mOhm LS, 6mOhm HS
Current - Output / Channel:	40A
Current - Peak Output:	-
Voltage - Supply:	80V
Voltage - Load:	80V
Operating Temperature:	175°C (TJ)
Features:	-
Fault Protection:	-
Mounting Type:	Surface Mount
Package / Case:	36-PowerBFSOP (0.295", 7.50mm Width)
Supplier Device Package:	PowerSSO-36 TP

Please confirm the specifications of the products when ordering.
