CSD95372AQ5M

CSD95372AQ5M

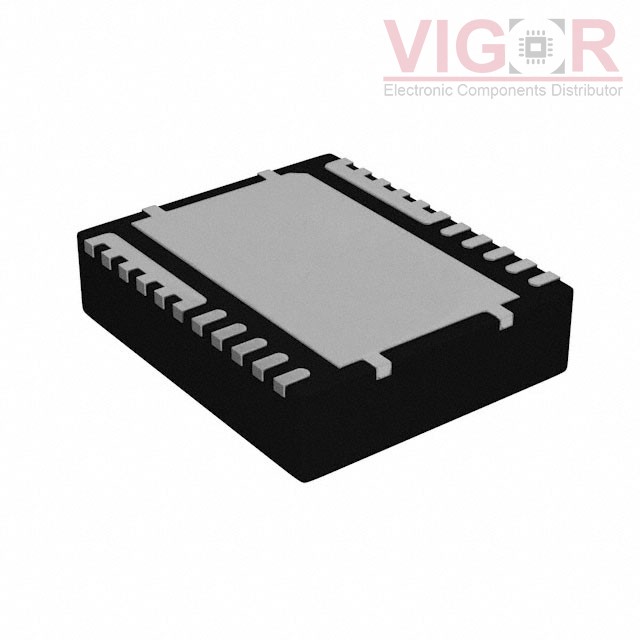

Image is for reference,
please contact us to get the real picture

Part No :

CSD95372AQ5M

Manufacturer
Texas Instruments
Description
IC SYNC BUCK NEXFET 12SON
Catalog
PMIC - Full, Half-Bridge Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 15 - Jul 19 2025
DataSheet
CSD95372AQ5M PDF
Availability
15498 pieces
Unit Price
$3.81000

Current price of CSD95372AQ5M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CSD95372AQ5M Specifications
Type Description
Series:NexFET™
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Output Configuration:Half Bridge
Applications:Synchronous Buck Converters
Interface:PWM
Load Type:Inductive
Technology:Power MOSFET
Rds On (Typ):-
Current - Output / Channel:60A
Current - Peak Output:90A
Voltage - Supply:4.5V ~ 5.5V
Voltage - Load:4.5V ~ 16V
Operating Temperature:-55°C ~ 150°C (TJ)
Features:Bootstrap Circuit, Status Flag
Fault Protection:Over Temperature, Shoot-Through, UVLO
Mounting Type:Surface Mount
Package / Case:12-Power LFDFN
Supplier Device Package:12-LSON (5x6)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
