TLE84110ELXUMA1

TLE84110ELXUMA1

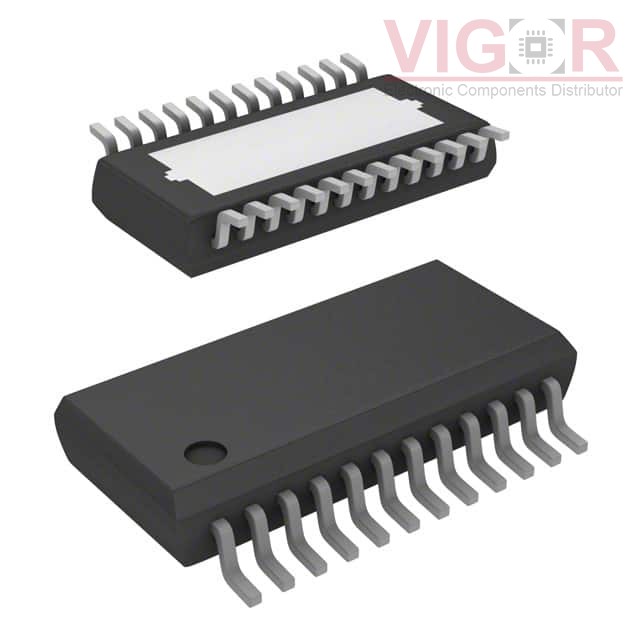

Image is for reference,
please contact us to get the real picture

Part No :

TLE84110ELXUMA1

Manufacturer
IR (Infineon Technologies)
Description
IC HALF-BRIDGE DRVR 10CH 24SSOP
Catalog
PMIC - Full, Half-Bridge Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 14 - Jul 18 2025
DataSheet
TLE84110ELXUMA1 PDF
Availability
1354 pieces
Unit Price
$7.54000

Current price of TLE84110ELXUMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TLE84110ELXUMA1 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Not For New Designs
Output Configuration:Half Bridge (10)
Applications:DC Motors, General Purpose
Interface:SPI
Load Type:Inductive
Technology:DMOS
Rds On (Typ):800mOhm LS, 800mOhm HS
Current - Output / Channel:-
Current - Peak Output:-
Voltage - Supply:3V ~ 5.5V
Voltage - Load:7V ~ 18V
Operating Temperature:-40°C ~ 150°C (TJ)
Features:-
Fault Protection:Open Load Detect, Over Temperature, Short Circuit, UVLO
Mounting Type:Surface Mount
Package / Case:24-LSSOP (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package:PG-SSOP-24-4
