VOD3120AB-VT

VOD3120AB-VT

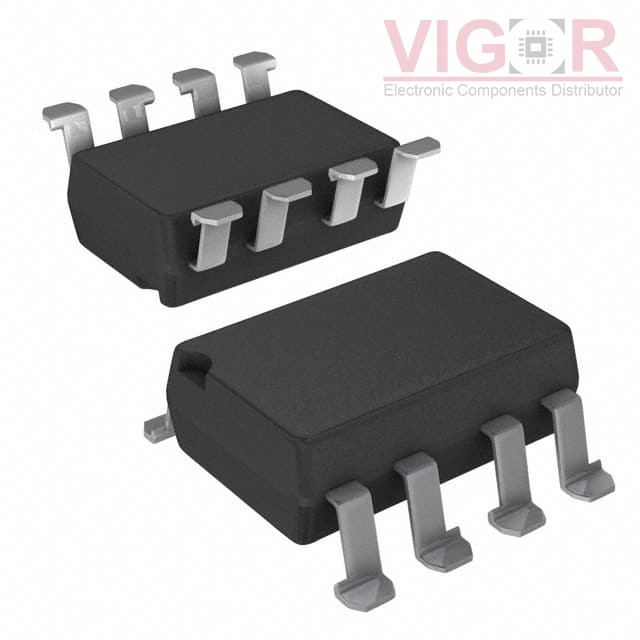

Image is for reference,
please contact us to get the real picture

Part No :

VOD3120AB-VT

Manufacturer
Vishay / Semiconductor - Opto Division
Description
OPTOISO IGBT MOSFET DRIVER 2.5A
Catalog
Isolators - Gate Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
VOD3120AB-VT PDF
Availability
990 pieces
Unit Price
$1.86000

Current price of VOD3120AB-VT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

VOD3120AB-VT Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Technology:Optical Coupling
Number of Channels:1
Voltage - Isolation:5300Vrms
Common Mode Transient Immunity (Min):35kV/µs
Propagation Delay tpLH / tpHL (Max):500ns, 500ns
Pulse Width Distortion (Max):70ns
Rise / Fall Time (Typ):35ns, 35ns
Current - Output High, Low:2.5A
Current - Peak Output:2.5A
Voltage - Forward (Vf) (Typ):1.37V
Current - DC Forward (If) (Max):20 mA
Voltage - Output Supply:15V ~ 30V
Operating Temperature:-40°C ~ 105°C
Mounting Type:Surface Mount
Package / Case:8-SMD, Gull Wing
Supplier Device Package:8-SMD
Approval Agency:CQC, cUL, UL, VDE
