ACNU-4804-000E

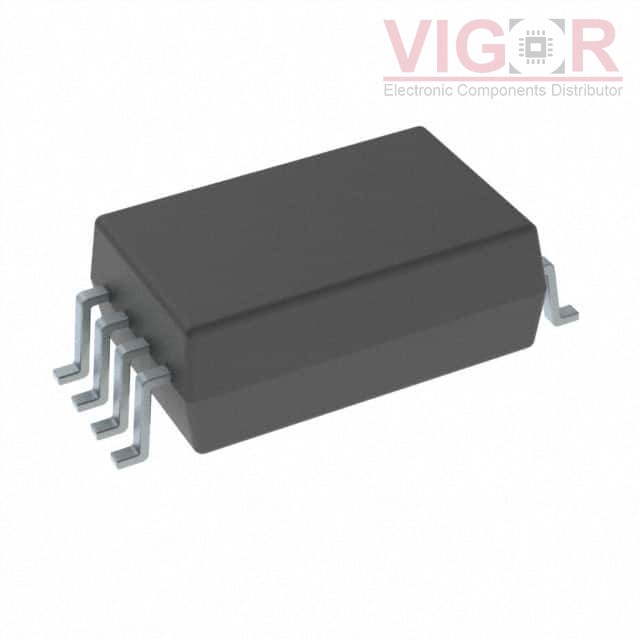

Image is for reference,
please contact us to get the real picture

Part No :

ACNU-4804-000E

Manufacturer
Broadcom
Description
GATE DRIVE OPTOCOUPLERLF
Catalog
Isolators - Gate Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 03 - Jul 07 2025
DataSheet
ACNU-4804-000E PDF
Availability
1956 pieces
Unit Price
$4.09000

Current price of ACNU-4804-000E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:-
Package:Tube
Part Status:Active
Technology:Capacitive Coupling
Number of Channels:1
Voltage - Isolation:5000Vrms
Common Mode Transient Immunity (Min):50kV/µs
Propagation Delay tpLH / tpHL (Max):120ns, 150ns
Pulse Width Distortion (Max):90ns
Rise / Fall Time (Typ):6ns, 6ns
Current - Output High, Low:125mA, 125mA
Current - Peak Output:-
Voltage - Forward (Vf) (Typ):1.5V
Current - DC Forward (If) (Max):20 mA
Voltage - Output Supply:4.5V ~ 30V
Operating Temperature:-40°C ~ 105°C
Mounting Type:Surface Mount
Package / Case:0605 (1613 Metric)
Supplier Device Package:0604
Approval Agency:CSA, UL
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
