TLP152(TPL,E

TLP152(TPL,E

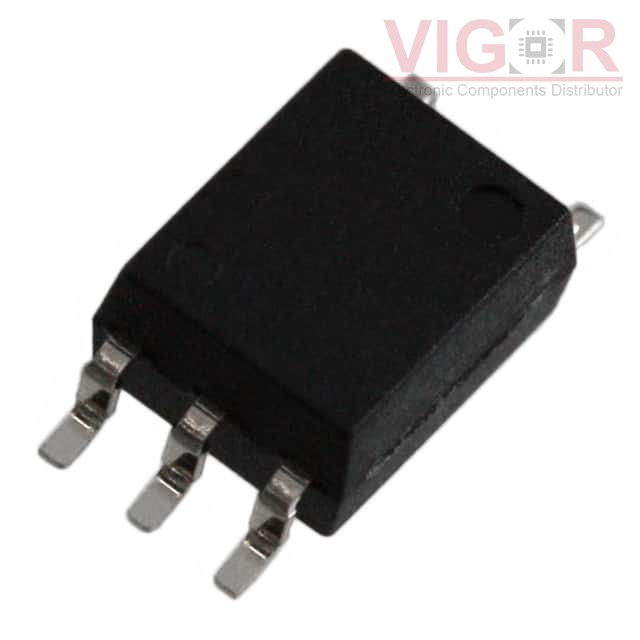

Image is for reference,
please contact us to get the real picture

Part No :

TLP152(TPL,E

Manufacturer
Toshiba Electronic Devices and Storage Corporation
Description
OPTOISO 3.75KV GATE DRIVER 6SO-5
Catalog
Isolators - Gate Drivers
Shipped from
HK warehouse
Expected Shipping Date
Aug 13 - Aug 17 2025
DataSheet
TLP152(TPL,E PDF
Availability
2155 pieces
Unit Price
$1.34000

Current price of TLP152(TPL,E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TLP152(TPL,E Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Technology:Optical Coupling
Number of Channels:1
Voltage - Isolation:3750Vrms
Common Mode Transient Immunity (Min):20kV/µs
Propagation Delay tpLH / tpHL (Max):145ns, 165ns
Pulse Width Distortion (Max):50ns
Rise / Fall Time (Typ):18ns, 22ns
Current - Output High, Low:2A, 2A
Current - Peak Output:2.5A
Voltage - Forward (Vf) (Typ):1.57V
Current - DC Forward (If) (Max):20 mA
Voltage - Output Supply:10V ~ 30V
Operating Temperature:-40°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:6-SOIC (0.179", 4.55mm Width), 5 Leads
Supplier Device Package:6-SO, 5 Lead
Approval Agency:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT UCC21739QDWRQ1

UCC21739QDWRQ1

IC POWER MANAGEMENT
HOT SI823H4BB-IS1R

SI823H4BB-IS1R

2.5KV DUAL GATE DRIVERS, LOW PRO

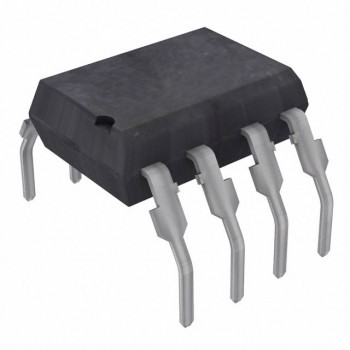

HOT VOD3120AG
