TLP2409(F)

TLP2409(F)

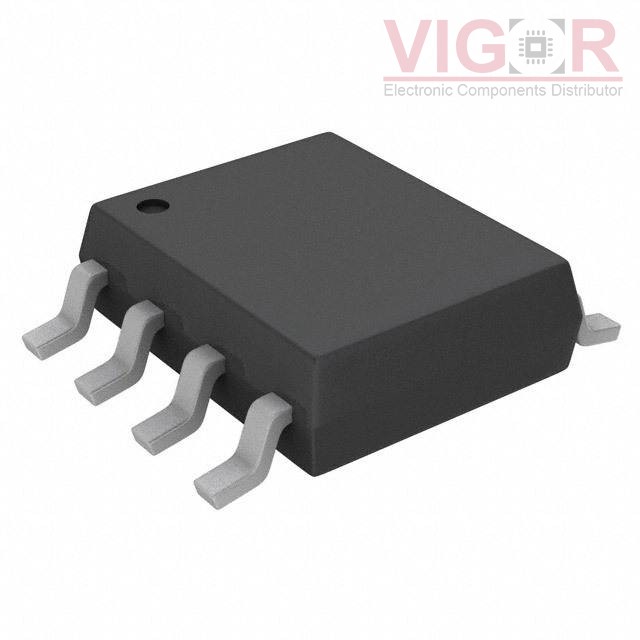

Image is for reference,
please contact us to get the real picture

Part No :

TLP2409(F)

Manufacturer
Toshiba Electronic Devices and Storage Corporation
Description
OPTOISO 3.75KV TRANS 8SO
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 15 - Jul 19 2025
DataSheet
TLP2409(F) PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of TLP2409(F) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TLP2409(F) Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Number of Channels:1
Voltage - Isolation:3750Vrms
Current Transfer Ratio (Min):20% @ 16mA
Current Transfer Ratio (Max):-
Turn On / Turn Off Time (Typ):800ns, 800ns (Max)
Rise / Fall Time (Typ):-
Input Type:DC
Output Type:Transistor
Voltage - Output (Max):20V
Current - Output / Channel:16mA
Voltage - Forward (Vf) (Typ):1.57V
Current - DC Forward (If) (Max):25 mA
Vce Saturation (Max):-
Operating Temperature:-55°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:8-SO
