9077002002

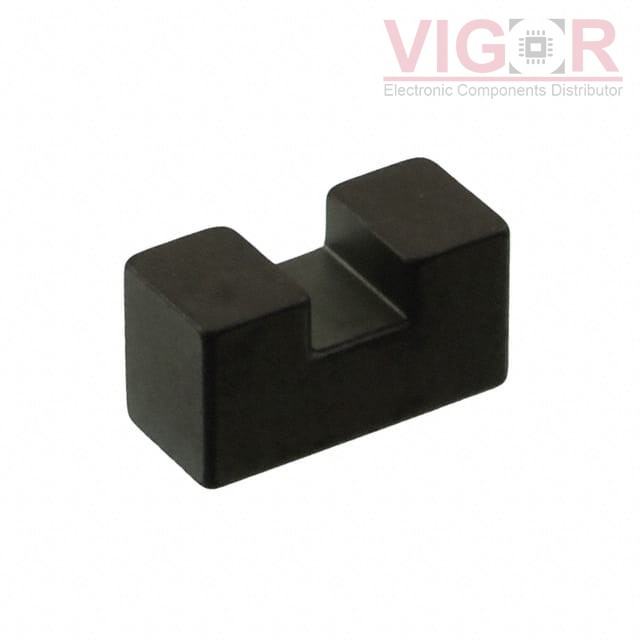

Image is for reference,
please contact us to get the real picture

Part No :

9077002002

Manufacturer
Fair-Rite Products Corp.
Description
77 U CORE
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
9077002002 PDF
Availability
535 pieces
Unit Price
$0.54000

Current price of 9077002002 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:-
Package:Bulk
Part Status:Active
Core Type:U
Supplier Device Package:-
Material:77
Diameter:-
Inductance Factor (Al):-
Tolerance:-
Gap:Ungapped
Effective Permeability (µe):-
Initial Permeability (µi):2000
Core Factor (ΣI/A) mm-1:168
Effective Length (le) mm:20.8
Effective Area (Ae) mm²:12.4
Minimum Core Cross Section (Amin) mm²:-
Effective Magnetic Volume (Ve) mm³:257
Finish:Uncoated
Height:4.06mm
Length:8.64mm
Width:4.57mm
