B65885A0000R097

B65885A0000R097

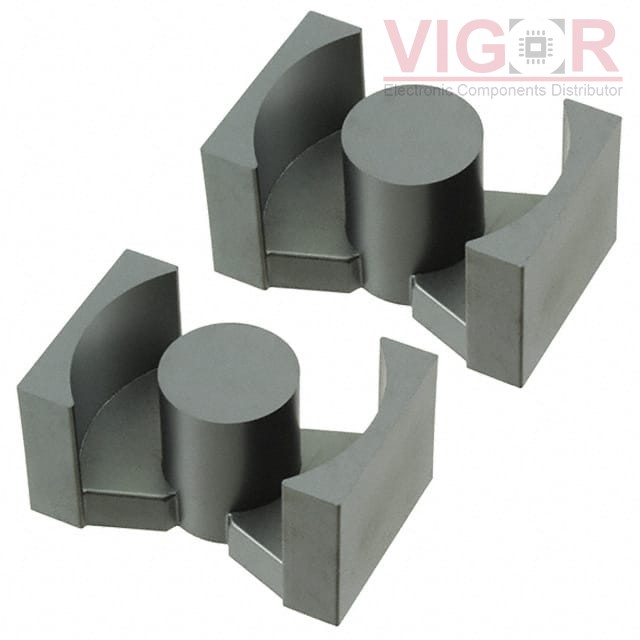

Image is for reference,
please contact us to get the real picture

Part No :

B65885A0000R097

Manufacturer
TDK EPCOS
Description
FERRITE CORE PQ 2.45UH N97 2PCS
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 14 - Jul 18 2025
DataSheet
B65885A0000R097 PDF
Availability
1159 pieces
Unit Price
$1.85000

Current price of B65885A0000R097 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B65885A0000R097 Specifications
Type Description
Series:B65885A
Package:Box
Part Status:Active
Core Type:PQ
Supplier Device Package:PQ 16 x 11.6
Material:N97
Diameter:-
Inductance Factor (Al):2.45 µH
Tolerance:-20%, +30%
Gap:Ungapped
Effective Permeability (µe):1250
Initial Permeability (µi):2300
Core Factor (ΣI/A) mm-1:0.641
Effective Length (le) mm:27
Effective Area (Ae) mm²:42.1
Minimum Core Cross Section (Amin) mm²:38.5
Effective Magnetic Volume (Ve) mm³:1136
Finish:Uncoated
Height:5.80mm
Length:16.40mm
Width:11.20mm
