PC95PQ20/20Z-12

PC95PQ20/20Z-12

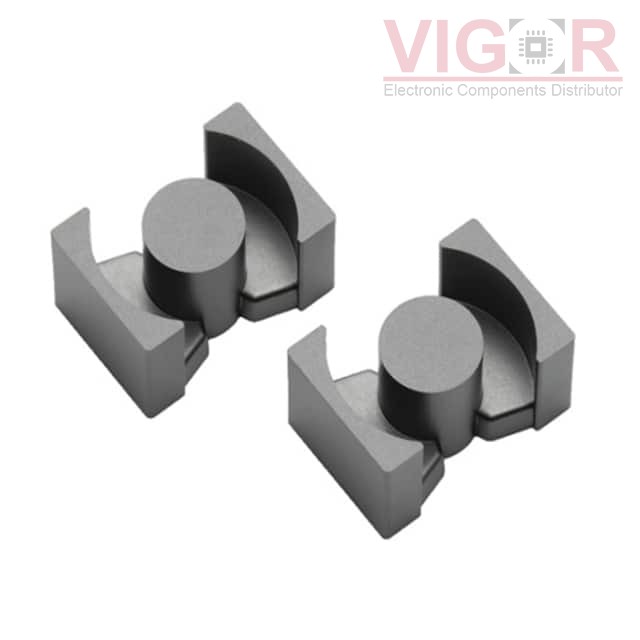

Image is for reference,
please contact us to get the real picture

Part No :

PC95PQ20/20Z-12

Manufacturer
TDK Corporation
Description
FERRITE CORE PQ 4UH 2PC SET
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 14 - Jul 18 2025
DataSheet
PC95PQ20/20Z-12 PDF
Availability
0 pieces
Unit Price
$7.99000

Current price of PC95PQ20/20Z-12 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PC95PQ20/20Z-12 Specifications
Type Description
Series:PQ
Package:Tray
Part Status:Active
Core Type:PQ
Supplier Device Package:PQ 20 x 20
Material:PC95
Diameter:-
Inductance Factor (Al):4 µH
Tolerance:±25%
Gap:Ungapped
Effective Permeability (µe):-
Initial Permeability (µi):-
Core Factor (ΣI/A) mm-1:0.74
Effective Length (le) mm:45.4
Effective Area (Ae) mm²:62
Minimum Core Cross Section (Amin) mm²:-
Effective Magnetic Volume (Ve) mm³:2790
Finish:Uncoated
Height:20.20mm
Length:20.50mm
Width:14.00mm
