B64290L0062X830

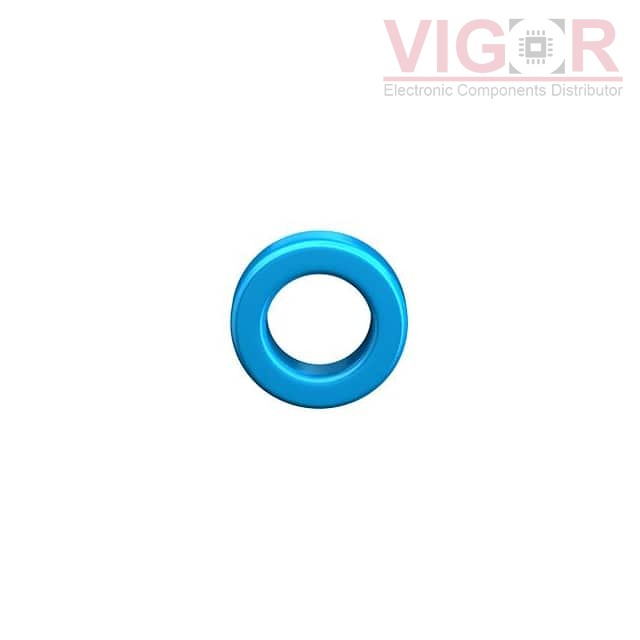

Image is for reference,
please contact us to get the real picture

Part No :: B64290L0062X830

Manufacturer: TDK EPCOS

Description: FERRITE CORES

Catalog: Ferrite Cores

Shipped from: HK warehouse

Expected Shipping Date: Jul 15 - Jul 19 2025

DataSheet: B64290L0062X830 PDF

Availability: 0 pieces

Unit Price: ~~$0.17423~~

Current price of B64290L0062X830 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B64290L0062X830 Specifications

Type	Description
Series:	B64290
Package:	Tape & Reel (TR)
Part Status:	Active
Core Type:	Toroid
Supplier Device Package:	R 9.53 × 4.75 × 3.17
Material:	N30
Diameter:	-
Inductance Factor (Al):	1.9 µH
Tolerance:	±25%
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	4300
Core Factor (ΣI/A) mm^-1:	2.85
Effective Length (le) mm:	20.72
Effective Area (Ae) mm²:	7.28
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	151
Finish:	Epoxy
Height:	-
Length:	-
Width:	-

Please confirm the specifications of the products when ordering.
