B64290A0040X830

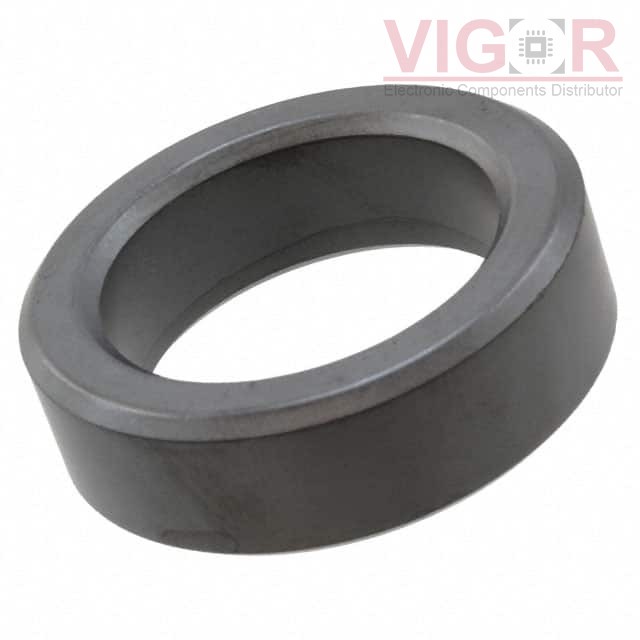

Image is for reference,
please contact us to get the real picture

Part No :: B64290A0040X830

Manufacturer: TDK EPCOS

Description: FERRITE CORE TOROID 5.4UH N30

Catalog: Ferrite Cores

Shipped from: HK warehouse

Expected Shipping Date: Jul 08 - Jul 12 2025

DataSheet: B64290A0040X830 PDF

Availability: 266 pieces

Unit Price: ~~$12.88000~~

Current price of B64290A0040X830 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B64290A0040X830 Specifications

Type	Description
Series:	B64290
Package:	Box
Part Status:	Active
Core Type:	Toroid
Supplier Device Package:	R 58.3 x 40.8 x 17.6
Material:	N30
Diameter:	58.30mm
Inductance Factor (Al):	5.4 µH
Tolerance:	±25%
Gap:	Ungapped
Effective Permeability (µe):	-
Initial Permeability (µi):	4300
Core Factor (ΣI/A) mm^-1:	1
Effective Length (le) mm:	152.4
Effective Area (Ae) mm²:	152.4
Minimum Core Cross Section (Amin) mm²:	-
Effective Magnetic Volume (Ve) mm³:	23230
Finish:	Uncoated
Height:	17.60mm
Length:	-
Width:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
