B65857A0000R045

B65857A0000R045

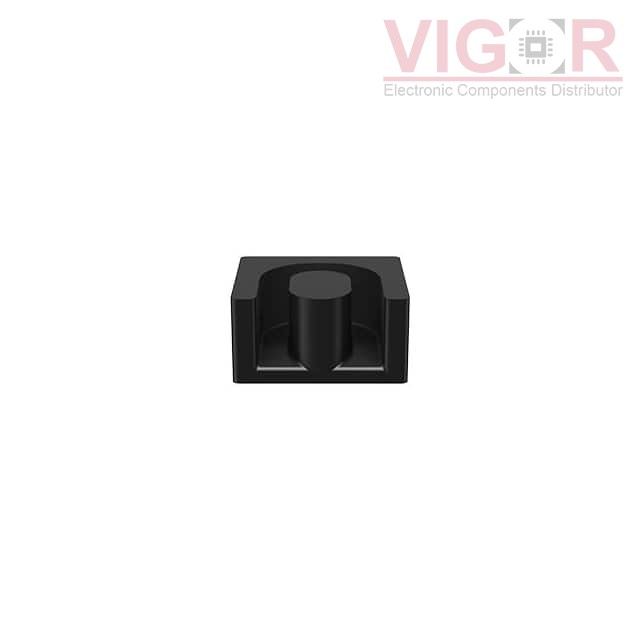

Image is for reference,
please contact us to get the real picture

Part No :

B65857A0000R045

Manufacturer
TDK EPCOS
Description
FERRITE CORE EPX 2.5UH N45 2PCS
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
B65857A0000R045 PDF
Availability
0 pieces
Unit Price
$0.38304

Current price of B65857A0000R045 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B65857A0000R045 Specifications
Type Description
Series:B65857A
Package:Box
Part Status:Not For New Designs
Core Type:EPX
Supplier Device Package:EPX 7 x 9
Material:N45
Diameter:-
Inductance Factor (Al):2.5 µH
Tolerance:-20%, +30%
Gap:Ungapped
Effective Permeability (µe):1820
Initial Permeability (µi):3800
Core Factor (ΣI/A) mm-1:0.91
Effective Length (le) mm:15.7
Effective Area (Ae) mm²:17.2
Minimum Core Cross Section (Amin) mm²:13.9
Effective Magnetic Volume (Ve) mm³:270
Finish:Uncoated
Height:3.75mm
Length:9.40mm
Width:9.00mm
